VanCurve - push window for campervans

Curved push window for campervans and converted vans

The 5000 mm curved glazing follows the natural rounding of a van's side panel — where a flat window sits proud and leaves gaps. Double-glazed acrylic, dark tint, black aluminium frame. Supplied complete with blackout blind and mosquito net, screws and a step-by-step guide.

Specifications

• Type: push window for converted vans — opening with safety latch
• Glazing: double-glazed acrylic, UV-protected
• Tint: dark — 30% light transmission
• Outer frame: black anodized aluminium, curved glazing, 5000 mm radius, rounded corners
• Inner counter-frame: reinforced aluminium
• Wall thickness: 25–75 mm (extendable with longer screws)
• Approval: ECE R43 — Europe, UK and Switzerland. VASP / TÜV compliant
• Compatibility: converted vans L1H1 to L4H3 — Ducato, Boxer, Jumper, Sprinter, Crafter, Master, Transit, Transporter and similar

Choosing the right size

• The size in the product name is the cut-out size, written width × height.
• Overall exterior size is 3 cm larger on each axis: cut-out + 3 cm × + 3 cm.
• The interior finishing frame sits above on the panel — so no extra space is needed behind the trim.
• Only the cut-out size matters. Mark it on the panel: if nothing obstructs it (reinforcements, cables, ducting), the window will fit.

Recommended sizes by position

Side panels

• 700 × 400
• 700 × 510
• 750 × 465
• 818 × 315
• 960 × 450 — L2H2 to L4H3 only

Rear doors

• 280 × 380
• 490 × 500 — L2H2 to L4H3 only

A question or a doubt? Contact our technical team — we answer before you buy, and while you fit it.

What's in the box

• VanCurve curved push window
• Reinforced aluminium mounting counter-frame
• Interior finishing frame with blackout blind and mosquito net
• Full set of screws
• Step-by-step installation guide
• ECE R43 homologation certificate

What you'll need

• One tube of Sikaflex 265
• Wooden battens or a wooden frame — 25 mm minimum on a panel van
• A jigsaw
• A cordless drill/driver

Average installation time: about 1 hour.

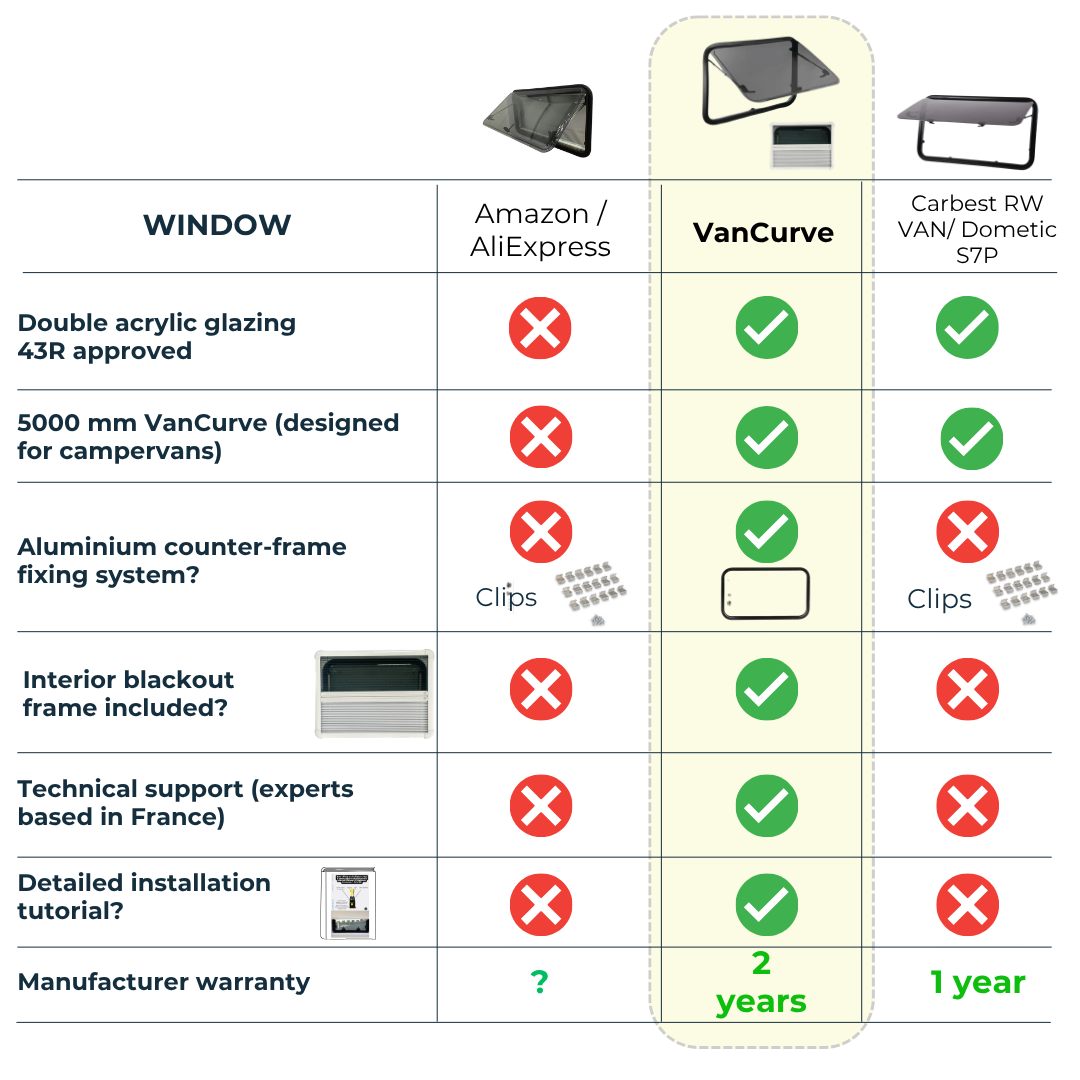

Why choose a VanCurve window

• Curved to fit — the 5000 mm radius follows the van's body line, where a flat frame leaves gaps
• Free technical advice — before you buy and while you fit it. Our team is in France.
• Delivered complete — no separate blind, net or fixing kit to order
• Road-legal — ECE R43, no manufacturer approval needed in Europe, the UK or Switzerland
• Spare parts for 5 years, 2-year warranty

Downloads: Fitting instructions for all Eurovan windows (PDF English)
