VANPOWER SMART – 12V electrical kit for campervans - with wiring diagram
- Victron Smart
- LiFePO4 6000 cycles
- 95 % usable
- ECE R10 • DVLA
The all-in-one premium (LiFePo4 / Victron) electrical kit for campervans and motorhomes - with wiring diagram and pre-sized components for an easy and safe installation.
or 4 × €324,75 interest-free with Klarna
Pay in 4 interest-free instalments: the first when you order, then every 30 days. Subject to approval by Klarna. Choose Klarna at checkout.
- Free delivery
- 30-day returns
- Secure payment
Couldn't load pickup availability
·
- 100% secure payment
- 30-day returns
- Free delivery from €399
Product advantages
Product advantages

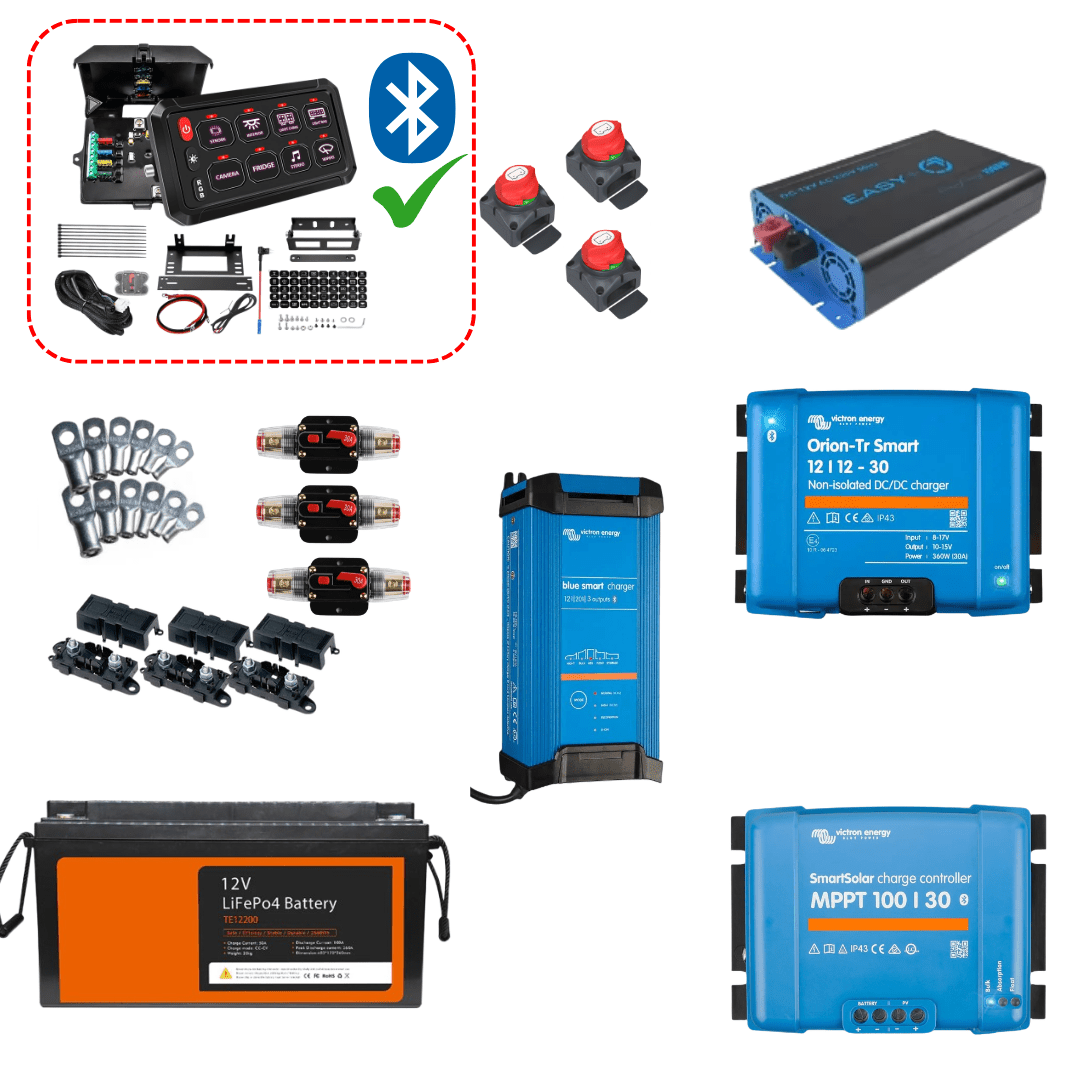

What's in your kit
LiFePO4 battery
100, 200 or 314 Ah, Bluetooth
Victron Orion-Tr 12/12-30A
Charges while driving
Victron SmartSolar MPPT 100/30
For 300–500 W of panels
Mains charger
Blue Smart 15A or 20A built into the inverter
Optional

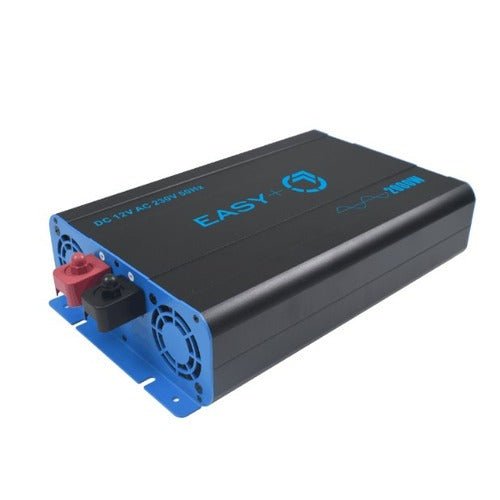

230V pure sine inverter
600 to 2000 W, optional
Connected distribution box
Switches and fuses
Protection
Isolators, bus bars, fuses, lugs
Wiring diagram
With cable sections + tutorial
Not included: solar panels and cables (sections given on the diagram).
3 ways to recharge
Additional information
Additional information
The VANPOWER SMART kit brings together the whole electrical system of a campervan, in a connected version: a LiFePO4 lithium battery, genuine Victron components and switches you control from your phone. Everything is pre-sized and supplied with a detailed wiring diagram.
Choosing the right kit
| Kit | LiFePO4 battery | Switches |
|---|---|---|
| VANPOWER | Included (100, 200 or 314 Ah) | Standard 12V distribution box + 5-gang switch panel with USB |
| VANPOWER SMART (this page) | Included (100, 200 or 314 Ah) | Connected switch panel, controlled from your phone |
Your autonomy (battery)
- 100 Ah: simple use, weekends away (12V fridge, lighting, USB charging)
- 200 Ah: regular use, several days off-grid and a few small 230V appliances
- 314 Ah: full-time van life and extended use of 230V appliances
| Battery | Dimensions (L × W × H) | Weight | BMS |
|---|---|---|---|
| 100 Ah | 260 × 168 × 209 mm | 9.6 kg | 100 A |
| 200 Ah | 483 × 170 × 240 mm | 18.5 kg | 200 A |
| 314 Ah | 483 × 170 × 240 mm | 32 kg | 200 A |
230V, depending on your appliances
- No inverter: a fridge, USB and 12V are enough (you can add an inverter later)
- 600 W: laptop and small appliances
- 1000 W: one small appliance such as a mini-oven or microwave
- 1500 W: one powerful appliance such as a kettle (~1200 W) (314 Ah battery recommended)
- 2000 W: several appliances at once (coffee machine + microwave…) (314 Ah battery recommended)
To size the inverter, take the wattage of your most power-hungry 230V appliance (shown on its label) and multiply it by 1.25 to 1.5. Example: an 800 W appliance needs a 1000 to 1200 W inverter.
The inverter includes a 20A AC/DC charger and an automatic bypass: plugged into mains power (campsite, 230V hook-up), it powers your appliances and recharges the battery, with nothing to switch.
Not sure about your set-up? Our team can build you a custom kit: contact us.

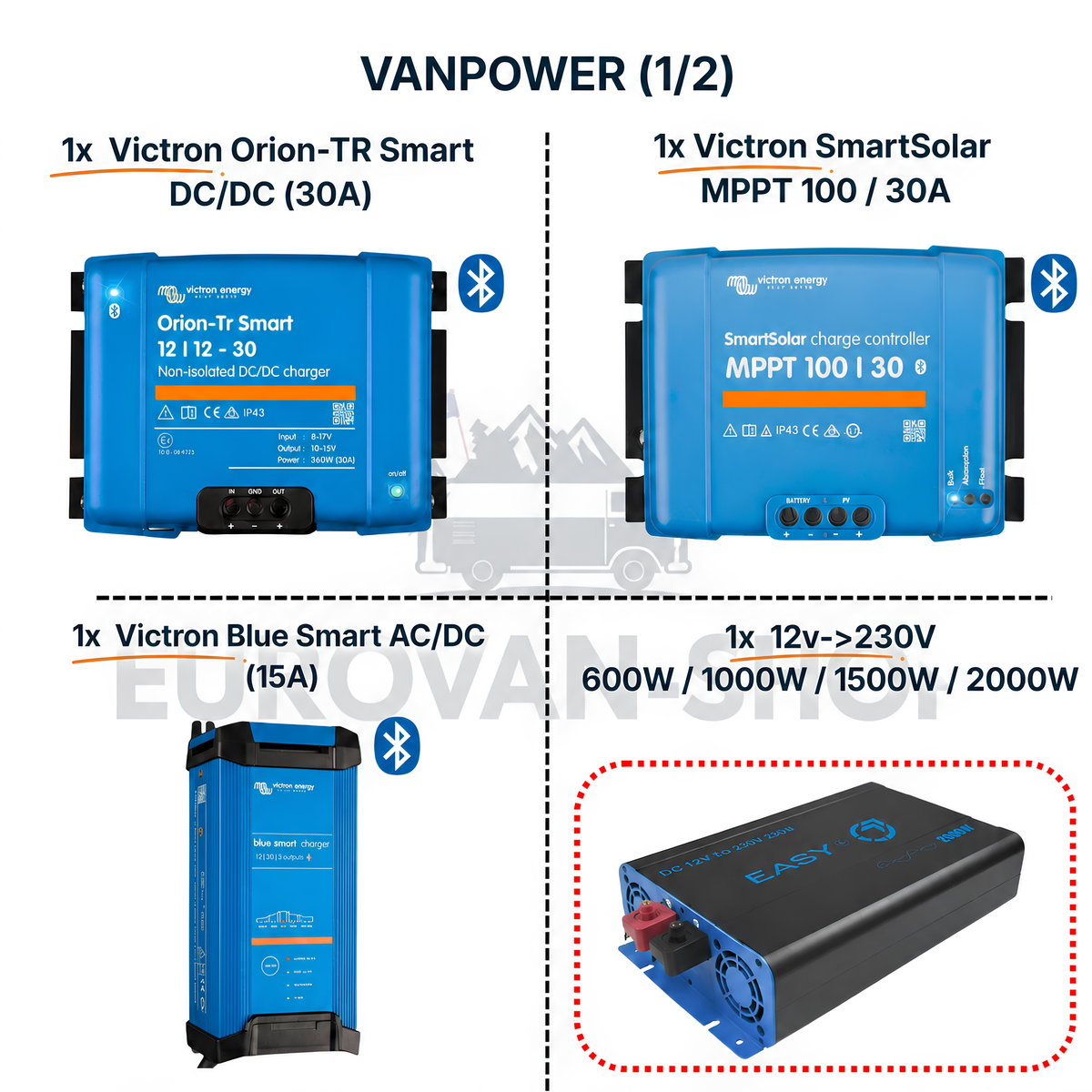

What's in the box

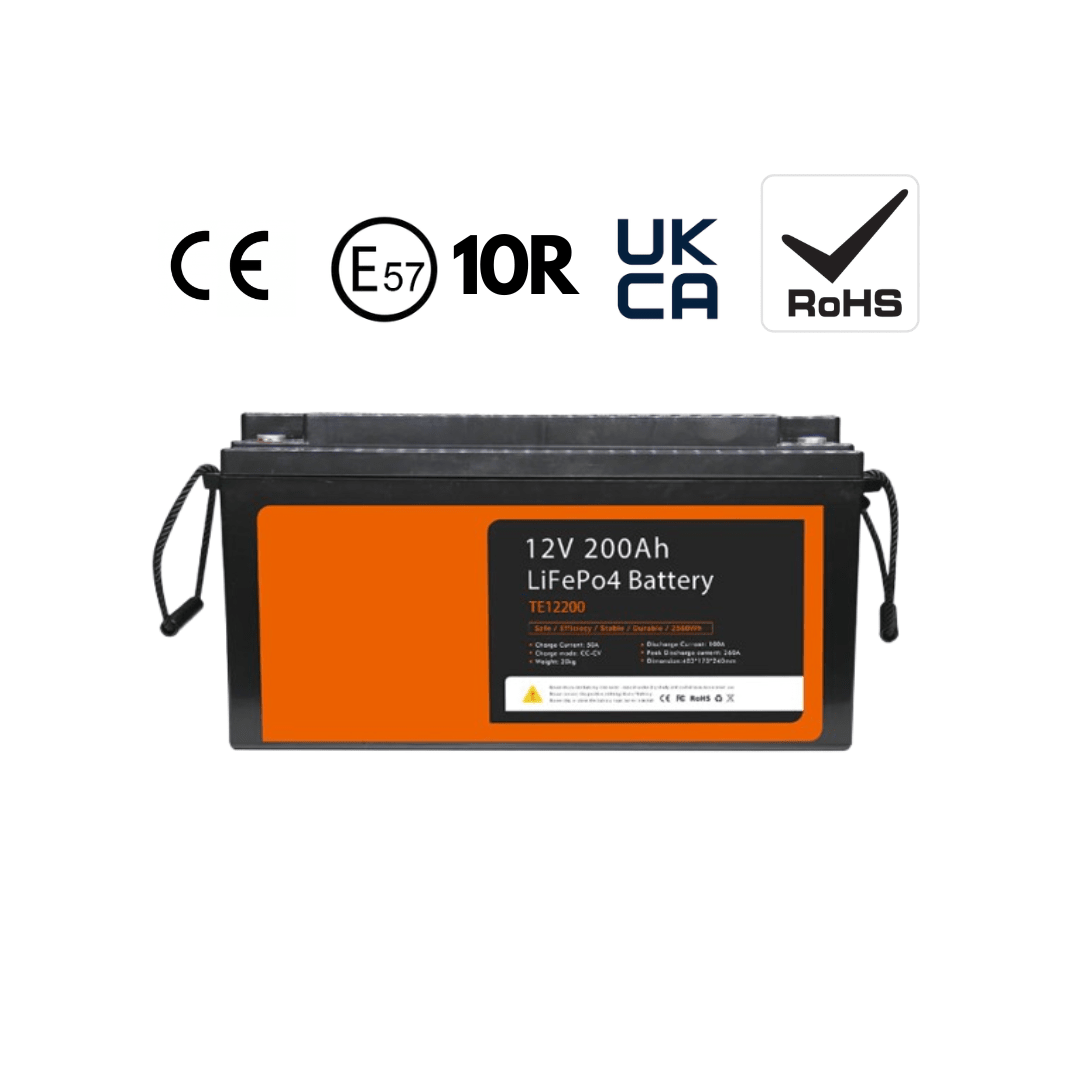

- 12V LiFePO4 lithium battery with Bluetooth: 100, 200 or 314 Ah as selected — built-in BMS (100 A on the 100 Ah, 200 A on the 200 and 314 Ah), 6000 cycles, 95 % usable capacity, 5-year warranty

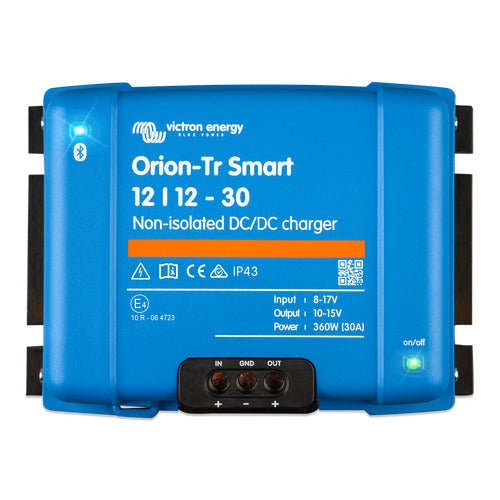

- Victron Orion-Tr Smart 12/12-30A DC/DC charger: recharges the battery while driving, from the alternator

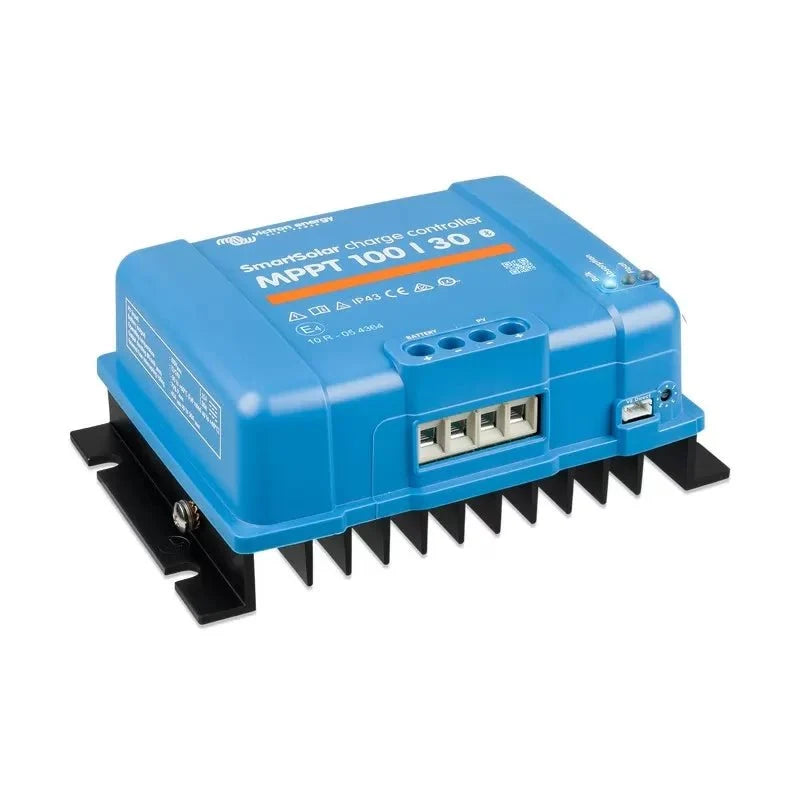

- Victron SmartSolar MPPT 100/30 solar charge controller: for 300 to 500 W of panels

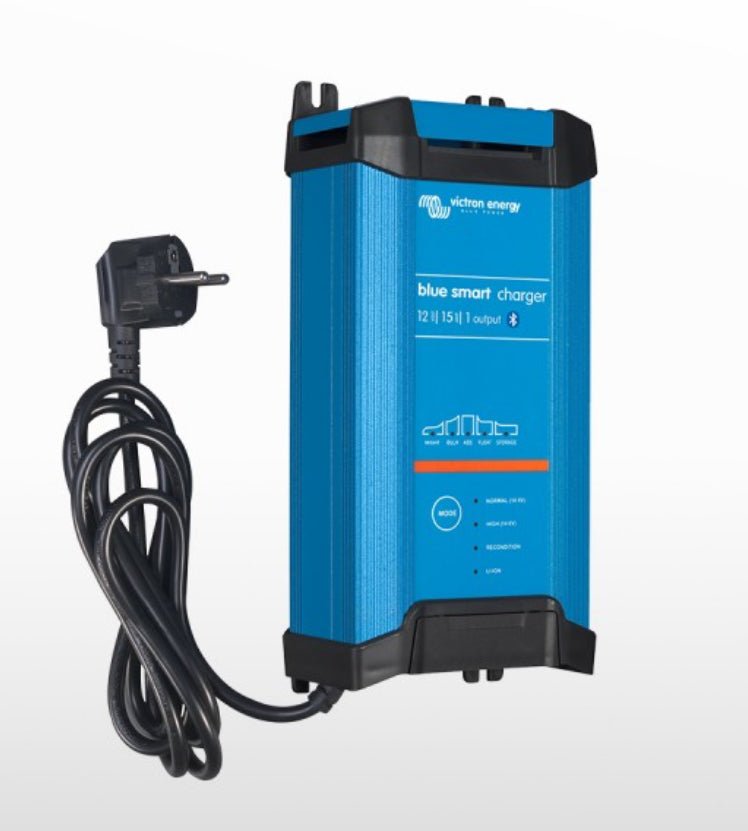

- Mains charging: Victron Blue Smart 15A charger (kits without inverter) or the 20A AC/DC charger built into the inverter
- 12V → 230V pure sine wave inverter, 600, 1000, 1500 or 2000 W, with 20A AC/DC charger and automatic bypass (versions with inverter only)
- Battery isolators, bus bars, fuses and cable lugs, pre-sized
- Detailed wiring diagram (with cable sections) and step-by-step tutorial

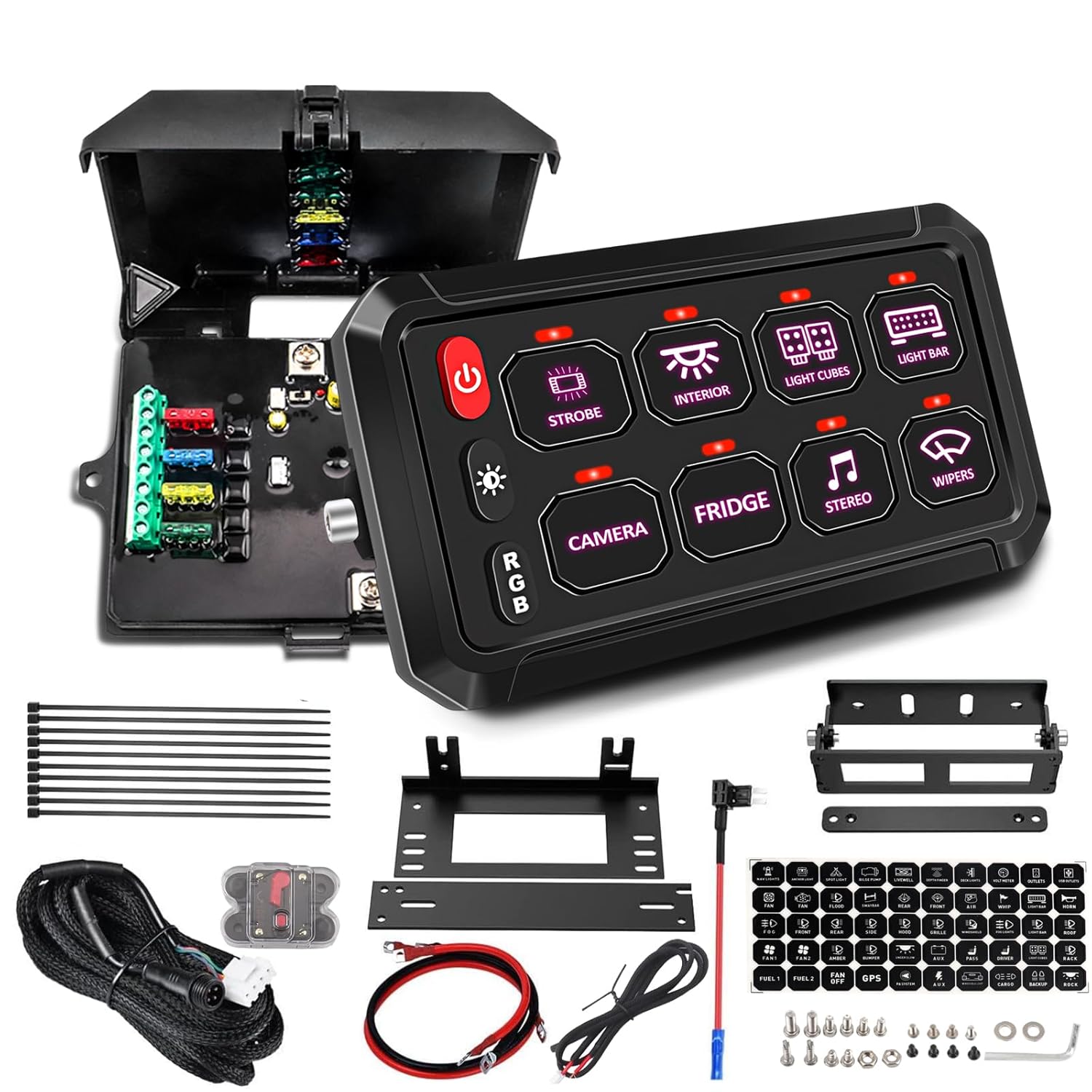

- Connected distribution box: fuse holder + switches controlled from your phone
Not included
- Solar panels (the kit includes the Victron SmartSolar MPPT 100/30 charge controller)
- Cables: not listed in the kit content; the cable sections are given on the wiring diagram
Downloads
Frequently asked questions and support
Which battery should I choose?
100 Ah for weekends, 200 Ah for regular use over several days, 314 Ah for full-time van life or a powerful inverter. Check the space available with the dimensions in the table above.
Do I need 230V?
Only if you use mains appliances (coffee machine, microwave…). Otherwise choose "No 230V inverter": the Blue Smart charger still lets you charge from a mains socket, and you can add an inverter later.
What is the automatic bypass?
Plugged into mains power (campsite, 230V hook-up), the inverter powers your appliances and recharges the battery at the same time, automatically.
I need more than 2000 W (induction hob, air conditioning)?
Contact our team for a custom kit with a more powerful inverter.
Is the certification recognised abroad?
Yes. The components are ECE R10 certified, which is what conversion approval asks for across Europe (e.g. VASP in France, TÜV in Germany, ITV in Spain), in the UK (DVLA, MOT) and in Switzerland (MFK).
Free technical support: our team helps you throughout the installation. A question? Contact us.
Compatibility
- Vehicles: campervans and motorhomes; 12 V system.
- Alternator charging: Victron Orion-Tr Smart 12/12-30A DC/DC charger.
- Solar: Victron SmartSolar MPPT 100/30, for 300 to 500 W of panels.
- Battery space: 260 × 168 × 209 mm (100 Ah) or 483 × 170 × 240 mm (200 and 314 Ah).
- Conversion approval: ECE R10 certified components; VASP / TÜV / ITV / DVLA / MFK compatible.
Warranty & returns
- 2-year warranty on the kit components; 5-year warranty on the LiFePO4 battery.
- 30-day returns on new, unopened products in their original packaging (return costs refunded if the item is defective or incorrect).
- Technical support by email or chat, Monday to Friday, 10:00–17:00.
- Free technical support during installation.
- ECE R10: inverter certificate available in Downloads.
