Campervan Electrics – 12V Kits, Lithium Batteries & Victron

(10 products)

A campervan electrical system needs a leisure battery, three ways to charge it (alternator while driving, solar, mains hook-up), protection and distribution, and optionally a 230 V inverter. The VANPOWER kits bring it all together, pre-sized with a detailed wiring diagram: a LiFePO4 battery (100, 200 or 314 Ah), genuine Victron components and an inverter from 600 to 2000 W. Every part is also sold separately.

VANPOWER kit VANPOWER SMART LiFePO4 battery DC/DC charger Inverter

Which battery capacity?

Battery	Typical use	Size (L × W × H)	Weight	BMS
100 Ah	Weekends: 12 V fridge, lighting, USB	260 × 168 × 209 mm	9.6 kg	100 A
200 Ah	Several days off-grid, a few small 230 V appliances	483 × 170 × 240 mm	18.5 kg	200 A
314 Ah	Full-time van life, extended 230 V use	483 × 170 × 240 mm	32 kg	200 A

Do I need a 230 V inverter?

Only if you use mains appliances. Take the wattage of your most power-hungry appliance (on its label) and multiply it by 1.25 to 1.5: an 800 W appliance needs a 1000 to 1200 W inverter. 600 W: laptop and small appliances; 1000 W: a mini-oven or microwave; 1500 W: a kettle; 2000 W: several appliances at once (314 Ah battery recommended from 1500 W). In the VANPOWER kits the inverter includes a 20 A charger and an automatic bypass on hook-up.

Kit or separate parts?

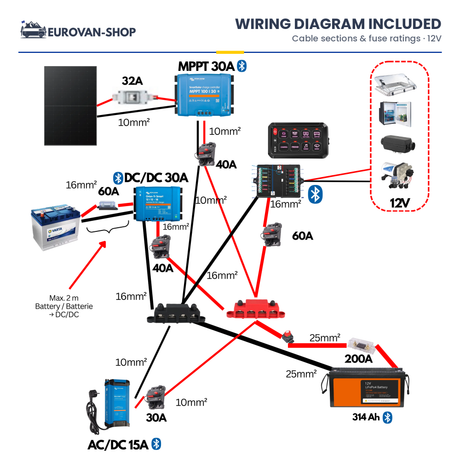

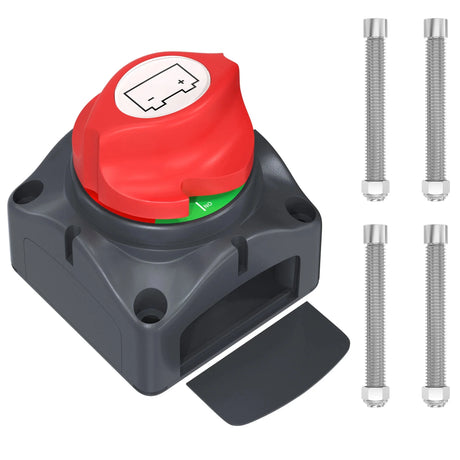

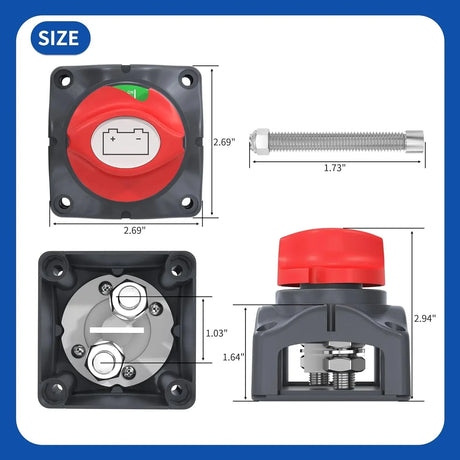

The VANPOWER kit is pre-sized and comes with a wiring diagram (with cable sections) and a step-by-step tutorial: no calculation needed, even for a first conversion. If you already have part of a system, the LiFePO4 battery, Victron Orion-Tr Smart 12/12-30A, Victron SmartSolar MPPT 100/30, Blue Smart IP22 charger, inverter and isolator switch are sold separately. Unlike a portable power station, everything is repairable component by component.

Frequently asked questions

What is included in the VANPOWER kit?
A LiFePO4 battery with Bluetooth (100, 200 or 314 Ah), a Victron Orion-Tr Smart 12/12-30A DC/DC charger, a Victron SmartSolar MPPT 100/30 for 300 to 500 W of panels, mains charging, an optional pure sine wave inverter, battery isolators, bus bars, fuses and lugs, a 12 V distribution box with a 5-gang switch panel, and a detailed wiring diagram.

VANPOWER or VANPOWER SMART?
Both have the same battery and Victron components. The SMART version replaces the standard switch panel with a connected panel you control from your phone.

Do you sell solar panels?
No. The kits include the Victron SmartSolar MPPT 100/30 charge controller; you add 300 to 500 W of panels of your choice.

Are the components approved?
The components are ECE R10 certified. Check your national conversion rules (DVLA/VCA, TÜV, RDW).

Guides

✓ LiFePO4 + genuine Victron · wiring diagram included · ECE R10 certified components · free technical support while you fit it
