VANPOWER KIT - Campervan 12V Electrical Kit (with wiring diagram)

All-in-one 12 V / 230 V electrical kit for campervans. Easy installation with the detailed wiring diagram supplied in the pack. Free technical support.

See all product information

€1.199⁰⁰ €1.799⁰⁰ −€600,00 −33 % €600,00 off

Tax included Shipping calculated at checkout.

Battery capacity

230V Inverter

Product variants

100% secure payment

PayPal / SEPA transfer / Klarna (4x)
Free technical advice

Any question?
Converting a van?

Save with our

Full description

The VANPOWER kit brings together the whole electrical system of a campervan: a LiFePO4 lithium battery, genuine Victron components and an optional 230V inverter. Everything is pre-sized and supplied with a detailed wiring diagram, so you can install it without any calculation, even as a beginner.

Choosing the right kit

Kit	LiFePO4 battery	Switches
VANPOWER (this page)	Included (100, 200 or 314 Ah)	Standard 12V distribution box + 5-gang switch panel with USB
VANPOWER SMART	Included (100, 200 or 314 Ah)	Connected switch panel, controlled from your phone

Your autonomy (battery)

100 Ah: simple use, weekends away (12V fridge, lighting, USB charging)
200 Ah: regular use, several days off-grid and a few small 230V appliances
314 Ah: full-time van life and extended use of 230V appliances

Battery	Dimensions (L × W × H)	Weight	BMS
100 Ah	260 × 168 × 209 mm	9.6 kg	100 A
200 Ah	483 × 170 × 240 mm	18.5 kg	200 A
314 Ah	483 × 170 × 240 mm	32 kg	200 A

230V, depending on your appliances

No inverter: a fridge, USB and 12V are enough (you can add an inverter later)
600 W: laptop and small appliances
1000 W: one small appliance such as a mini-oven or microwave
1500 W: one powerful appliance such as a kettle (~1200 W) (314 Ah battery recommended)
2000 W: several appliances at once (coffee machine + microwave…) (314 Ah battery recommended)

To size the inverter, take the wattage of your most power-hungry 230V appliance (shown on its label) and multiply it by 1.25 to 1.5. Example: an 800 W appliance needs a 1000 to 1200 W inverter.

The inverter includes a 20A AC/DC charger and an automatic bypass: plugged into mains power (campsite, 230V hook-up), it powers your appliances and recharges the battery, with nothing to switch.

Not sure about your set-up? Our team can build you a custom kit: contact us.

Advantages of the VANPOWER kit

Easy installation, even for beginners: wiring diagram included and pre-sized components
3 charging sources: solar panels, mains socket and alternator while driving
Premium components: LiFePO4 battery and Victron, Bluetooth monitoring
Repairable component by component, unlike portable power stations
Free technical support while you install it
ECE R10 certified components, accepted for conversion approval across Europe (e.g. VASP, TÜV, ITV), in the UK (DVLA, MOT) and in Switzerland (MFK)

Package content

12V LiFePO4 lithium battery with Bluetooth: 100, 200 or 314 Ah as selected — built-in BMS (100 A on the 100 Ah, 200 A on the 200 and 314 Ah), 6000 cycles, 5-year warranty
Victron Orion-Tr Smart 12/12-30A DC/DC charger: recharges the battery while driving, from the alternator
Victron SmartSolar MPPT 100/30 solar charge controller: for 300 to 500 W of panels
Mains charging: Victron Blue Smart 15A charger (kits without inverter) or the 20A AC/DC charger built into the inverter
12V → 230V pure sine wave inverter, 600 to 2000 W, depending on the version selected
Battery isolators, bus bars, fuses and cable lugs, pre-sized

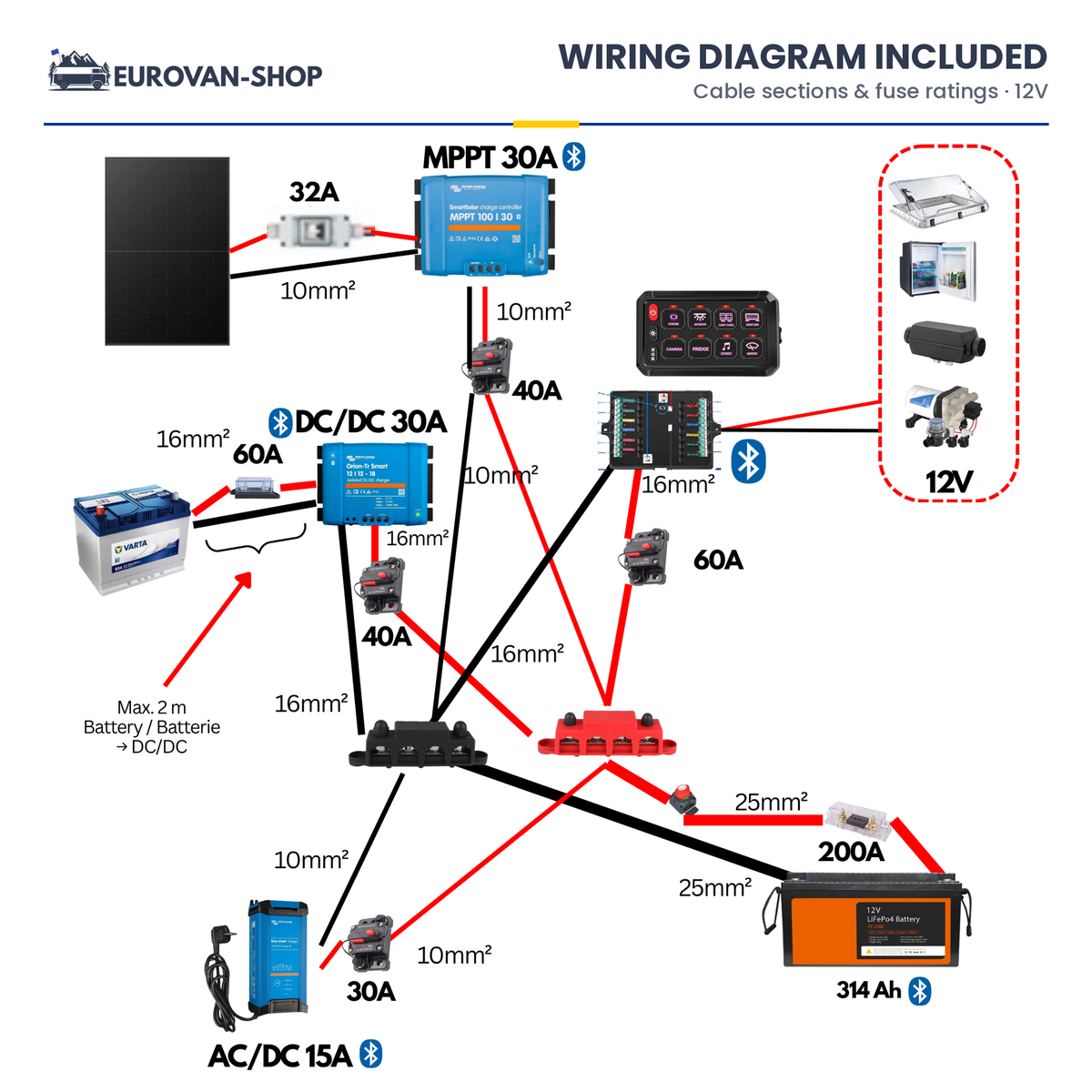

Detailed wiring diagram (with cable sections) and step-by-step tutorial
12V distribution box + 5-gang switch panel with USB

Downloads

Frequently asked questions and support

Which battery should I choose?
100 Ah for weekends, 200 Ah for regular use over several days, 314 Ah for full-time van life or a powerful inverter. Check the space available with the dimensions in the table above.

Do I need 230V?
Only if you use mains appliances (coffee machine, microwave…). Otherwise choose "No 230V inverter": the Blue Smart charger still lets you charge from a mains socket, and you can add an inverter later.

What is the automatic bypass?
Plugged into mains power (campsite, 230V hook-up), the inverter powers your appliances and recharges the battery at the same time, automatically.

I need more than 2000 W (induction hob, air conditioning)?
Contact our team for a custom kit with a more powerful inverter.

Is the certification recognised abroad?
Yes. The components are ECE R10 certified, which is what conversion approval asks for across Europe (e.g. VASP in France, TÜV in Germany, ITV in Spain), in the UK (DVLA, MOT) and in Switzerland (MFK).

Free technical support: our team helps you throughout the installation. A question? Contact us.

Shipping fees

Free standard shipping UK, Switzerland and Europe above 399 EUR / CHF / GBP

For orders below : Shipping calculated at checkout

Return Policy

We accept returns within 30 days of purchase for unused items in original packaging.

Refunds are processed within 7 business days after approval.

Damaged or defective items? Contact us immediately with photos.

Battery type

LiFePO4 Lithium with Bluetooth
Battery capacity

100 Ah / 200 Ah / 314 Ah (by variant)
Usable capacity

95% (deep-discharge campervan battery)
Battery cycles

6000 cycles
Battery warranty

5 years
Inverter

Optional (600 / 1000 / 1500 / 2000 W)
Charging sources

Solar (Victron MPPT 100/30) · Alternator (Victron DC/DC 30A) · Mains (Victron Blue Smart 15A without inverter, or the inverter's 20A charger)
Monitoring

Bluetooth via VictronConnect app
Certification

ECE-R10, VASP / TÜV / ITV / DVLA / MFK compatible
Diagram included

Yes — detailed wiring diagram + step-by-step tutorial
Technical support

Included (free during installation)
