VanLight Bay Window - Window for converted vans and motorhomes

€135⁰⁰

Tax included Shipping calculated at checkout.

Dimensions (Width x Height)

Product variants

Product Details

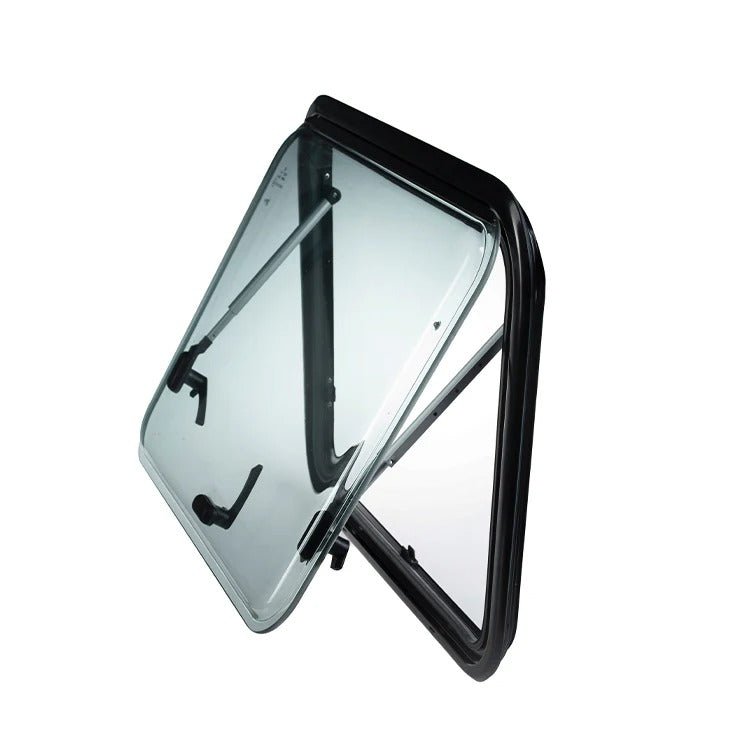

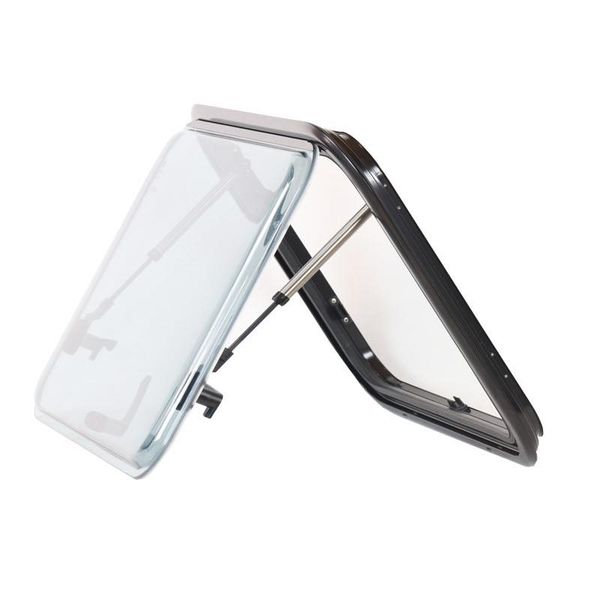

The VanLight window brings light, ventilation, and modern design to your van, campervan, or motorhome with its double-glazed, UV-resistant acrylic glass for comfort and insulation.

It features three secure opening positions and can be installed quickly in approximately one hour with the included aluminum subframe and video tutorial. An optional interior frame with blackout blind and mosquito net is available for added comfort.

Compatible with all types of vans (Ducato, Master, Sprinter, Crafter, Transporter) and motorhomes, for a bright and practical converted van.

Specification

Type: Projecting window for vans, panel vans, and motorhomes

Glazing: Double-pane, light gray tinted, UV-resistant acrylic

Opening: 3 positions with secure latches

Wall thickness: 24 to 74 mm

Included: Aluminum inner frame, mounting hardware, video tutorial

VanLight Window - Window for converted vans and motorhomes

Double glazing with UV-resistant acrylic (light gray tint)
VASP certified (43-R)

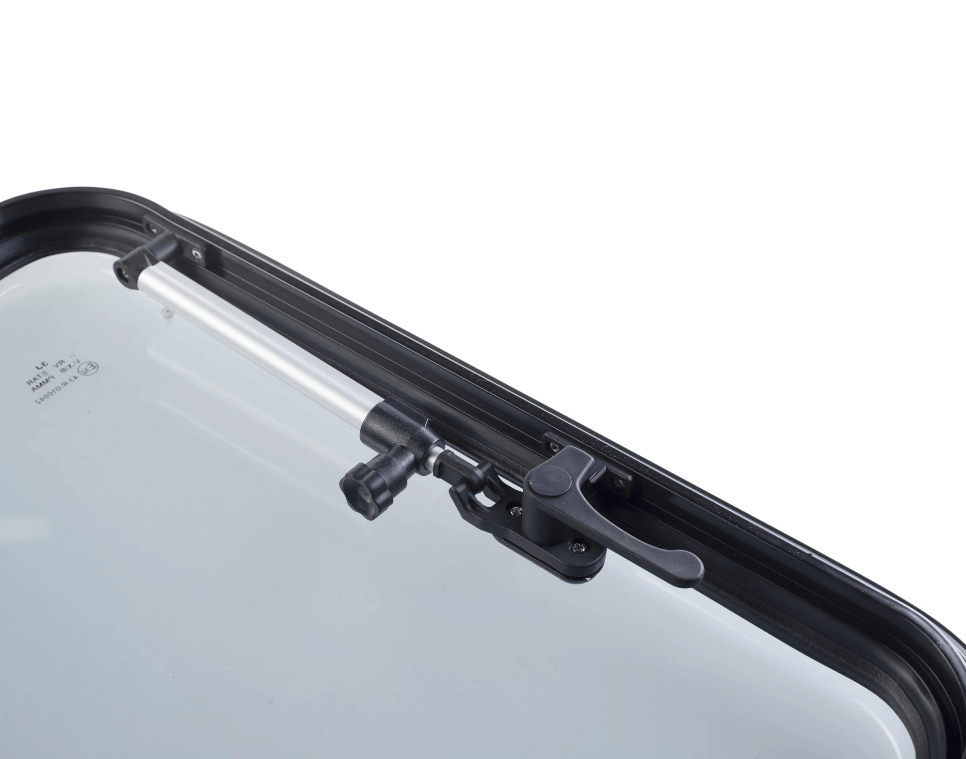

3 opening and closing positions with secure latches
Suitable for wall thicknesses from 0.95 in to 2.95 in
Product delivered with
Aluminum inner counterframe
Screws
Step-by-step installation tutorial
What you will need
A tube of Sikaflex 265 adhesive sealant
A jigsaw
A screwdriver

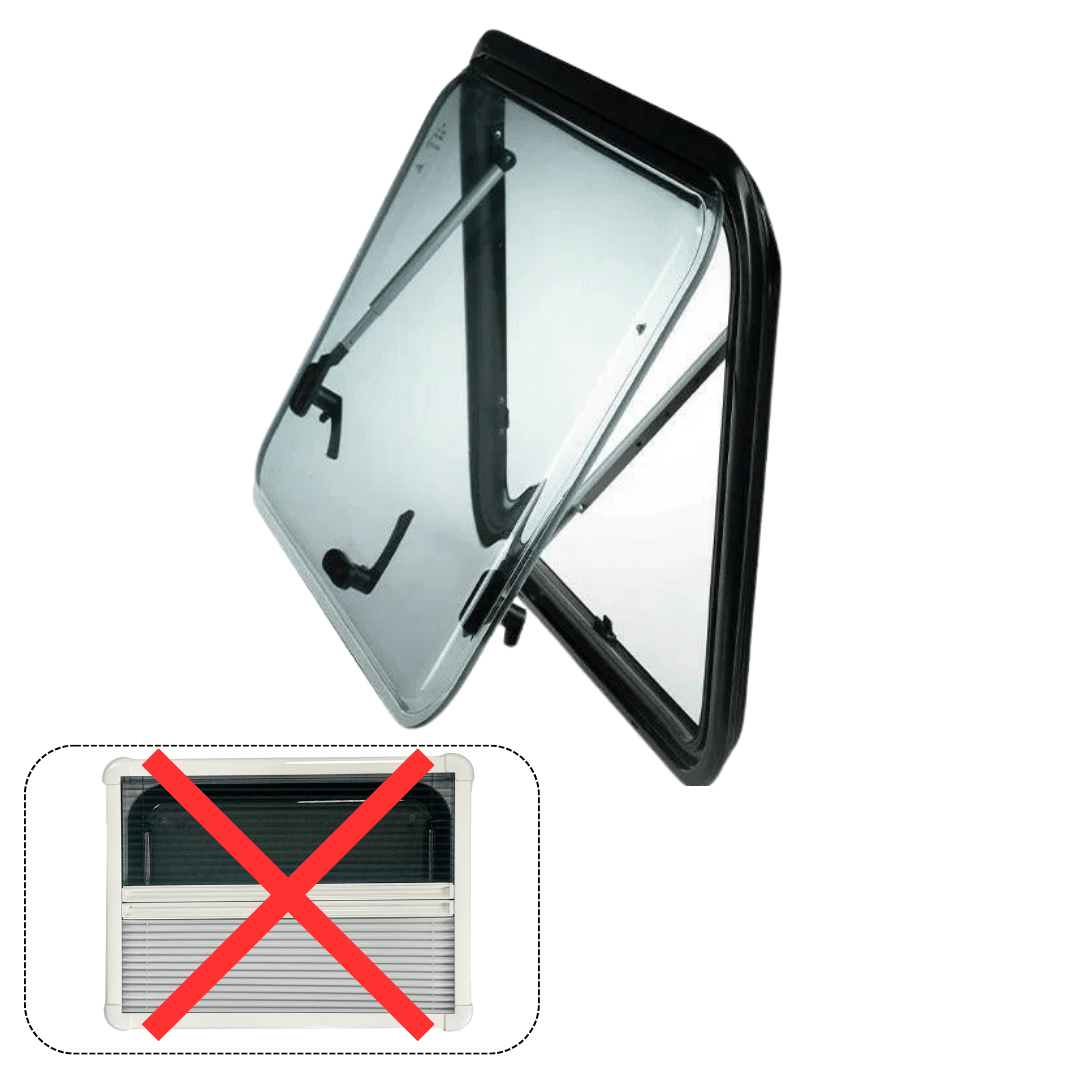

Optional: An inner frame with blackout blind and mosquito net (complete window available here)
Average installation time: 1 hour

Vehicles compatible with these projectable windows:

All types of panel vans (e.g. Ducato, Master, Crafter, Sprinter, Transporter, etc.)

Motorhomes
Caravans

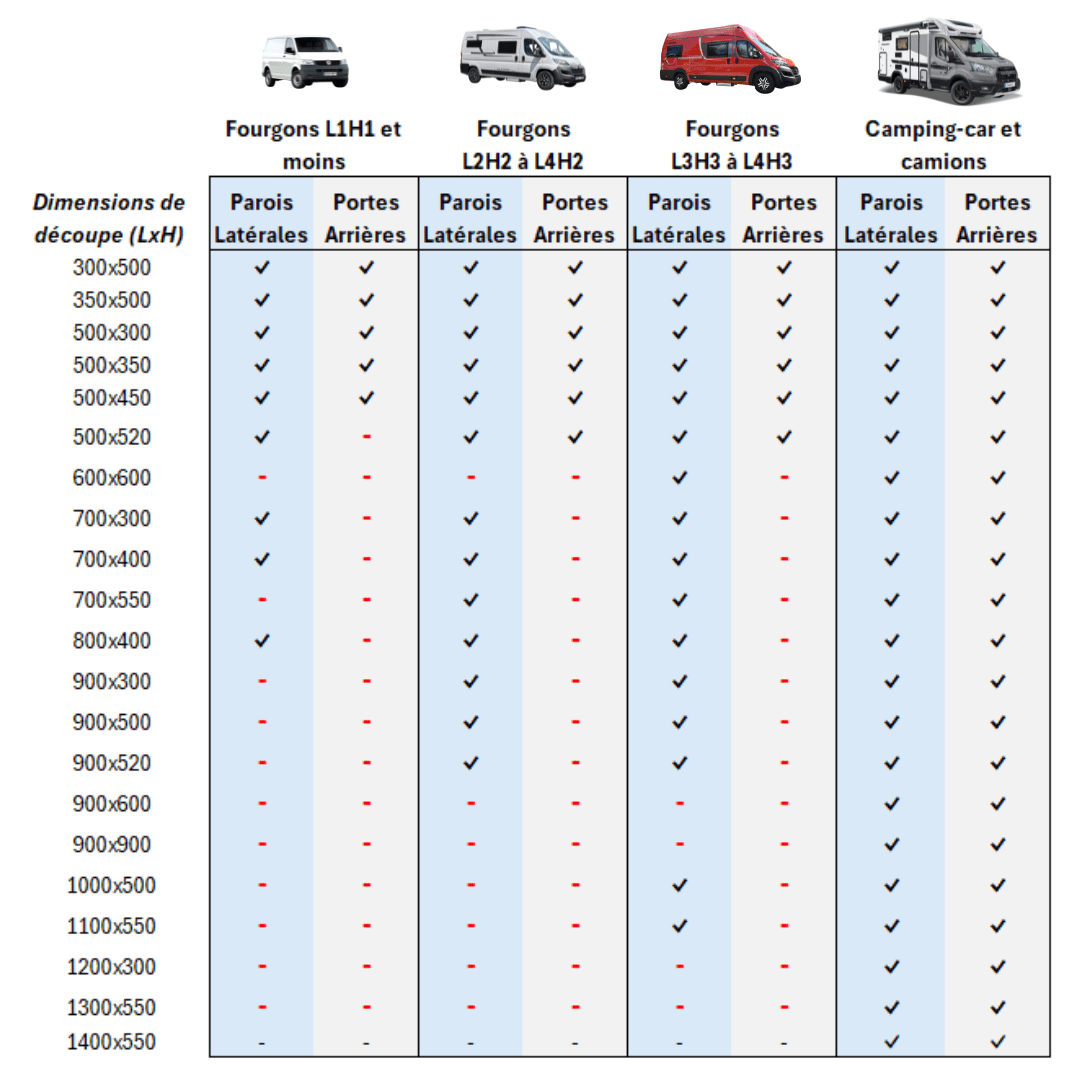

Recommended sizes (cut dimensions in sheet metal - L x H mm):

Ducato / Boxer / Jumper van (L2H2 and above):

Sliding door:
800 x 500
900 x 450
900 x 500
Rear doors:
500 x 300
500 x 450
Side panels:
700 x 300
700 x 400

Sprinter / Crafter van:
Sliding door:
1100 x 550
Rear doors:
500 x 300
500 x 450
Side panels: above bed or worktop:
700 x 300
700 x 400

Transporter T5/T6 and Ducato L1H1 and L2H1 vans:
Sliding door:
700 x 400
Rear doors:
500 x 300
500 x 450
Side panels:
700 x 300
700 x 400

About VanLight projectable windows:

VanLight projectable windows have been specially developed by Vanlife Store in partnership with the world's leading manufacturers of windows for campervans and motorhomes.

They incorporate high-quality components (reinforced aluminum, acrylic double glazing) and are all 43-R certified.

All our VanLight windows come with a 2-year warranty and spare parts are available for 5 years.
