VANPOWER - Campervan Electrical Kit (with wiring diagram)

Turnkey 12V/230V electrical kit for campervans and converted vans

Everything you need for reliable off-grid power, pre-sized and ready to fit. Supplied with a detailed wiring diagram (wire gauge, fuses), a step-by-step guide and free technical support from our team in France.

Specifications

• Type: turnkey campervan electrical kit
• Battery: 12V LiFePO4 with BMS and Bluetooth — 100 / 200 / 314 Ah depending on your choice
• Battery life: up to 6000 cycles

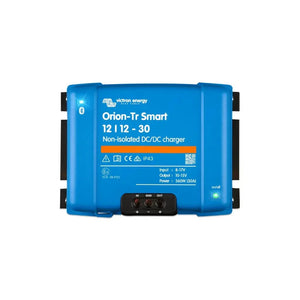

• Charging while driving: Victron Orion-Tr Smart 12/12-30A DC/DC charger
• Solar charging: Victron SmartSolar MPPT 100/30 — takes 300 to 500 W of panels
• Inverter: optional — 600 to 2000 W, R10 certified, with built-in 20A AC/DC charger and automatic bypass
• Also included: distribution box, switch panel with USB charging sockets, 12V fuse holder, battery isolators
• Approval: CE / ECE R10 — Certification-compatible for UK, Europe, and Switzerland
• Serviceability: expandable and fully repairable, component by component
• Compatibility: campervans, motorhomes and converted vans

Choosing the right kit

Two decisions, and only two.

1. Battery capacity — how long you stay off-grid

• 100 Ah — simple use: 12V fridge, lighting, USB charging, weekends away
• 200 Ah — regular use: several days off-grid, several appliances at once
• 314 Ah — heavy 230V use, or long-duration off-grid living

2. Inverter — only if you run mains appliances

• No inverter — a fridge, USB and 12V are enough. You can always add one later.
• 600 W — laptop and small low-draw 230V appliances
• 1000 W — one small 230V appliance such as a mini-microwave
• 1500 W — one powerful appliance such as a kettle (~1200 W)
• 2000 W — several appliances at once (coffee machine + microwave)

How to size it: check the wattage on your appliance's label, then take 1.25 to 1.5 times that figure. An 800 W appliance needs a 1000–1200 W inverter.

Good to know: the inverter includes a 20A AC/DC charger and an automatic bypass. Plugged into a mains socket at a campsite, it powers your appliances and recharges the battery at the same time — nothing to switch, nothing to get wrong. This is also how the kit charges from mains, so if you want mains charging, choose a version with an inverter.

Not sure about your configuration? Our team can also build you a custom pack — contact us.

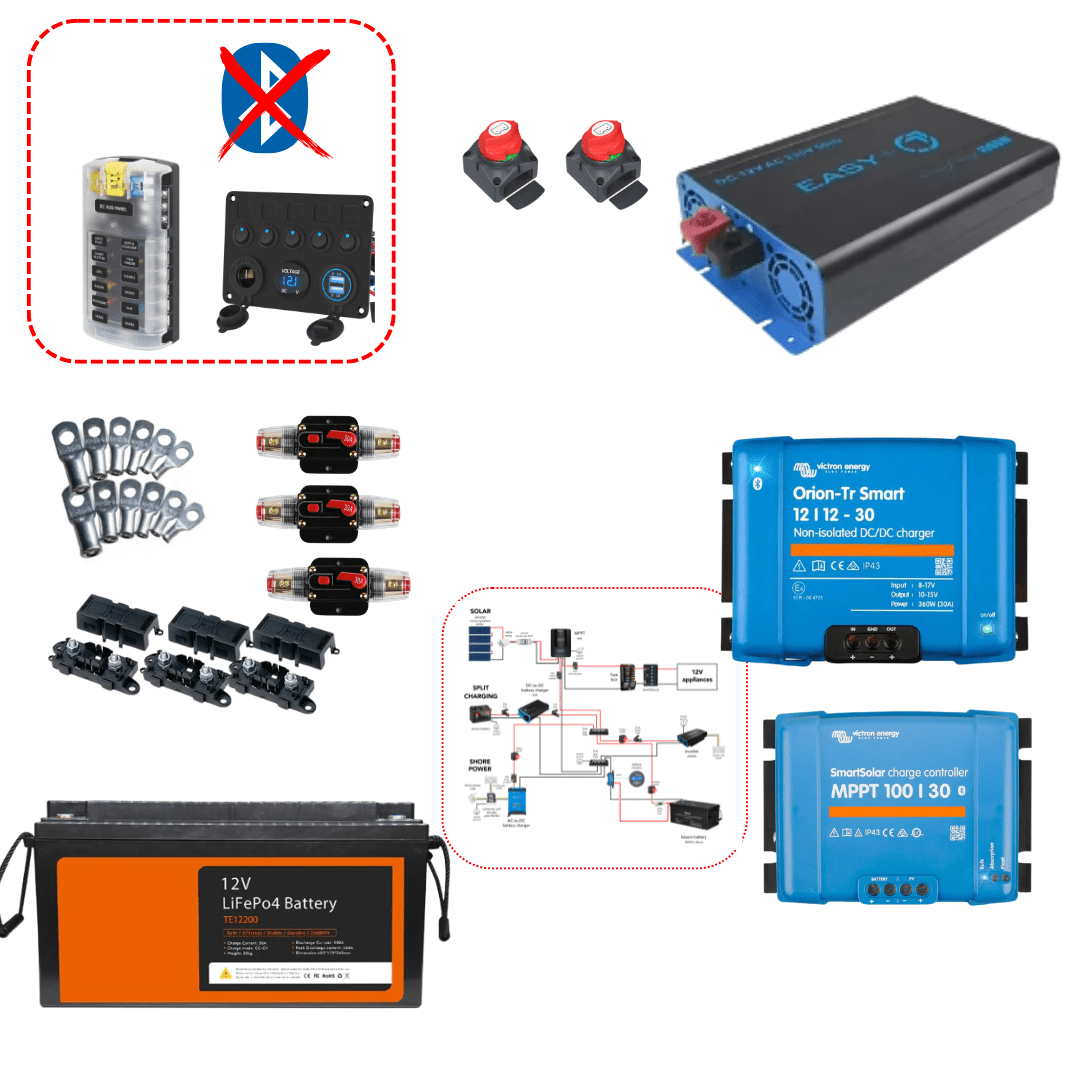

What's in the box

• Detailed wiring diagram + step-by-step tutorial

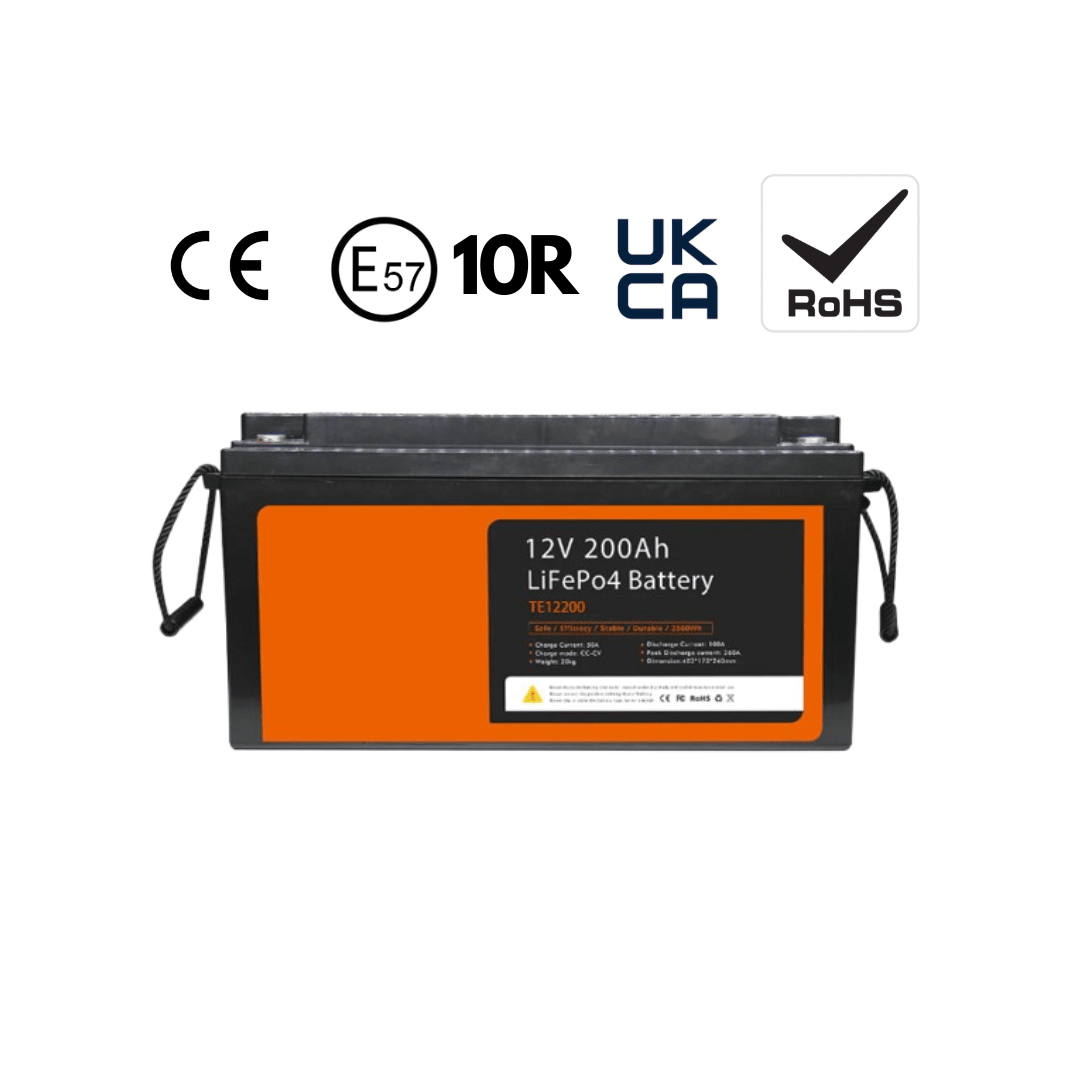

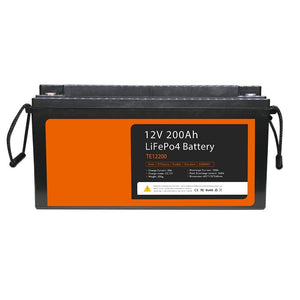

• 12V LiFePO4 battery with BMS and Bluetooth — 100 / 200 / 314 Ah

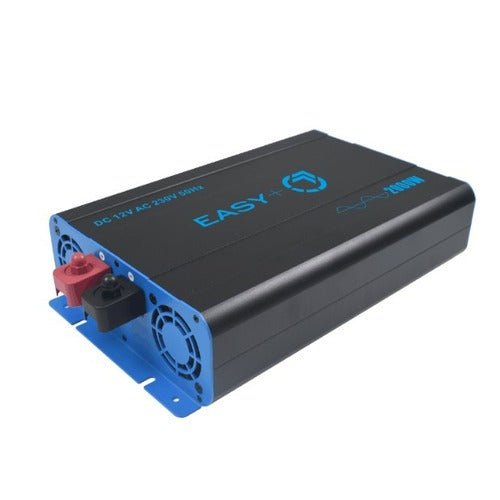

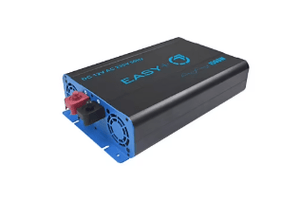

• Optional 12V → 230V inverter, 600 to 2000 W, R10 certified, with built-in 20A AC/DC charger and automatic bypass

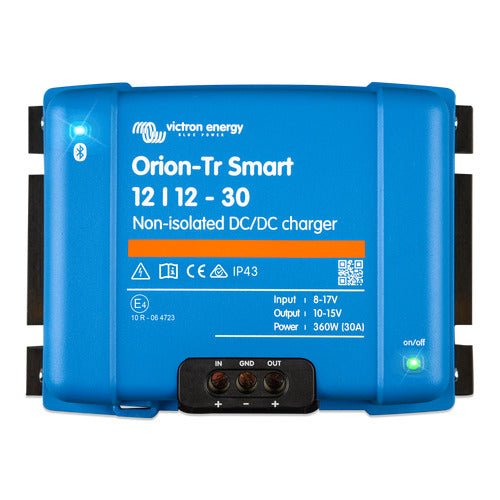

• Victron Orion-Tr Smart 12/12-30A DC/DC charger — recharges from the alternator while driving

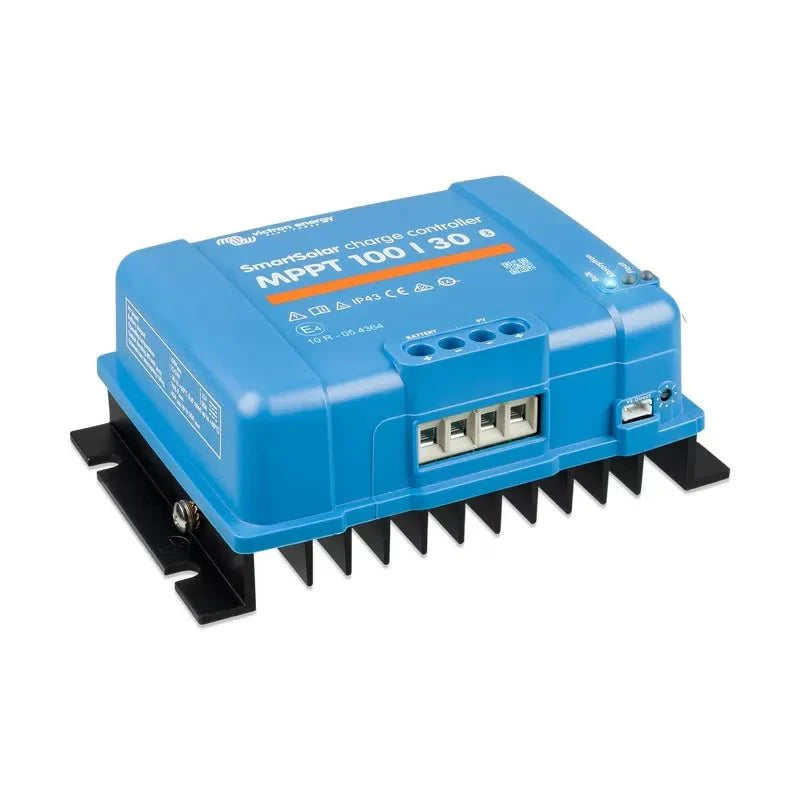

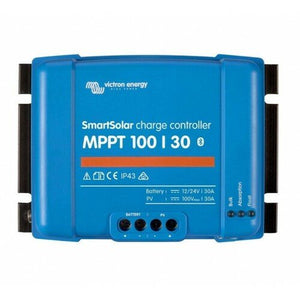

• Victron SmartSolar MPPT 100/30 solar regulator — takes 300 to 500 W of standard panels

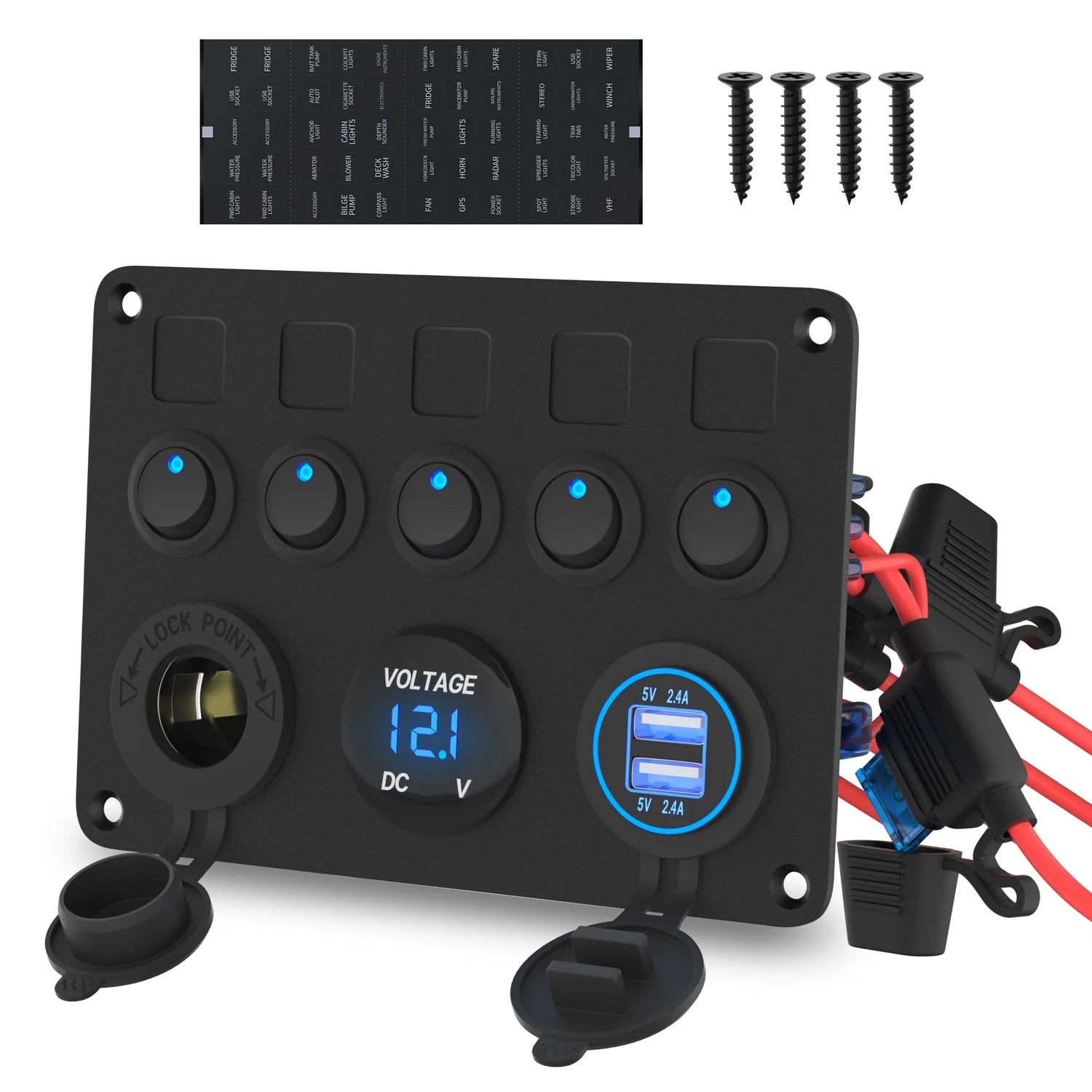

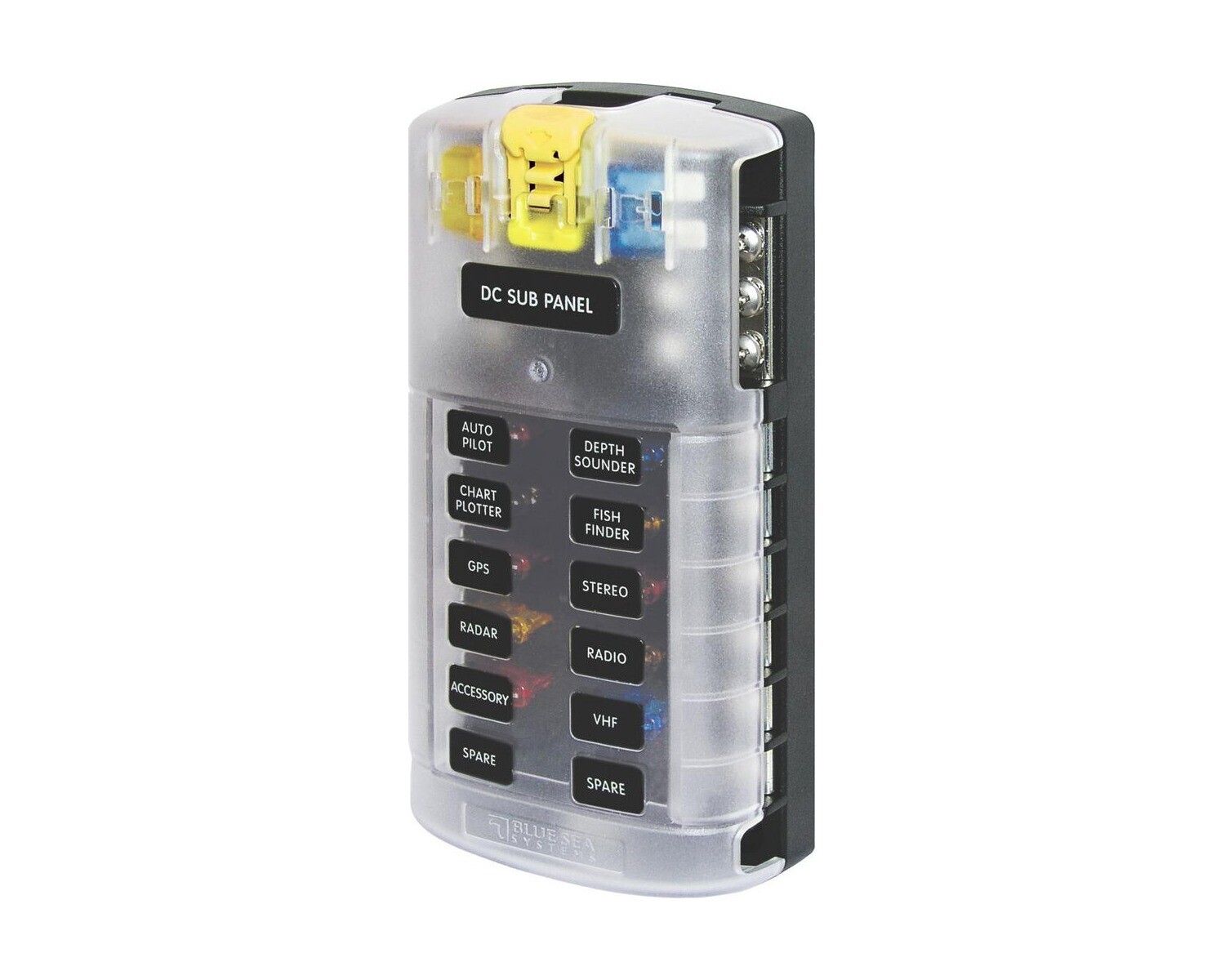

• Distribution box + switch panel with USB charging sockets and 12V fuse holder

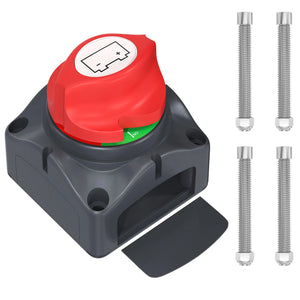

• Battery isolators, fuses and cable terminals

What you'll need — not included

• Electrical cable — the lengths depend on your own layout, so we don't guess them for you
• Solar panels, 300 to 500 W — standard domestic panels are compatible

Installation — workable even for beginners

• Wiring diagram included — a clear plan for a safe fit
• Pre-sized components — no calculations to do
• Free technical support from our team while you install it

Why choose VANPOWER

• Genuine Victron charging components, not a generic bundle
• Road-legal — CE / ECE R10 certified, compatible with VASP registration in France
• Full electrical protection — isolators, fuses, correctly sized cable specified on the diagram
• Expandable and repairable — add panels or an inverter later, replace one component instead of the whole system
• Free technical advice — before you buy and while you fit it. Our team is in France.

Frequently asked questions

Which battery should I choose?
100 Ah for weekends, 200 Ah for regular multi-day use with a small inverter, 314 Ah for full-time van life and/or a large inverter.

Do I need the 230V inverter?
Only if you use mains appliances — coffee machine, microwave, induction hob. Note that the inverter is also what lets you charge from a mains socket. You can add one later.

What is the automatic bypass?
Plugged into a mains socket, the inverter powers your 230V appliances and recharges the battery in parallel, automatically. No switching, no risk of error.

I need more than 2000 W — induction hob, air conditioning.
Contact our team for a custom quote with a higher-capacity inverter.

Is it compatible with VASP registration?
Yes. All components are CE / ECE R10 certified, which meets the VASP requirements in France.
