12 VDC pressure pump with bypass, diaphragm, and pressure switch AQUATEC

€12900
Tax included Shipping calculated at checkout.

Product Details

The WM AQUATEC 12V DC pressure pump delivers a powerful, pulsation-free flow of 11.6 L/min for your van, motorhome, or boat. Its integrated pressure switch automatically activates the pump when a tap is opened.

Quiet and self-priming up to 4 meters, it is dry-run protected and suitable for drinking water. Supplied with barbed fittings and a pre-filter for simple and reliable installation.

Ideal for a high-performance, safe, and comfortable water system on board all your recreational vehicles.

Specification

Type: 12V DC diaphragm pump for vans, campers, motorhomes, or boats

Flow rate: 11.6 L/min, pulsation-free

Quiet operation: Mounted on vibration-damping mounts and features multiple diaphragms

Safety features: Dry-run resistant, suitable for drinking water

Fittings included: Ø 12 mm (straight and 90°) + pre-filter

Reference: EA4116

EAN-134251369901385

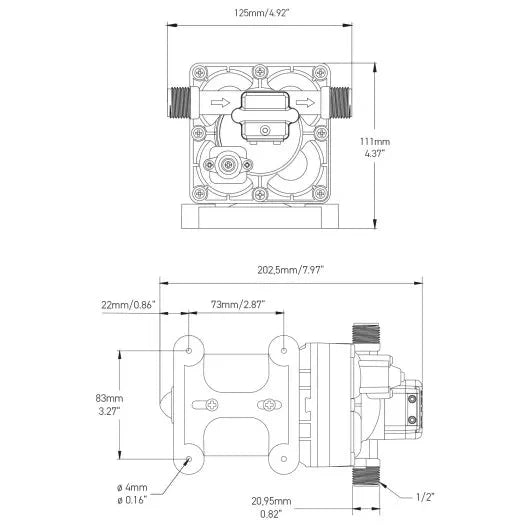

Dimensions: 25 x 11.1 x 20.3 cm
Weight: 1.9 kg
Features
WM AQUATEC multi-membrane water unit 11.6 L/min

The WM AQUATEC membrane pump allows you to create a water system on board your camper van or minivan. This water unit starts up automatically thanks to its pressure switch and can supply several water points: shower head, tap, etc.

This 12 V electric membrane pump is installed outside your tank and draws water to supply your tap or shower head.

Thanks to the built-in pressure switch, the WM AQUATEC pump starts automatically, so there is no need to install a switch tap!
The pump motor has several diaphragms, minimizing vibration and ensuring quiet operation. The pump is also mounted on silent blocks, again to reduce noise pollution.

The pump is self-priming up to 4 m, so it can be installed higher than the water tank. Please note that at this height, the flow rate will be significantly affected.

The high-quality diaphragm pump delivers a flow rate of 11.6 L/min and comes with Ø 12 mm straight + 90° grooved connectors to simplify installation in your minivan or boat. A pre-filter is also provided to limit the passage of foreign objects.

Made from materials certified for drinking water, the pump is also equipped with an adjustable bypass control system. If the pressure demand is too low, the pump bypasses the water without turning on.

Note: if you are planning to install a water heater, check that it is compatible with this pump.

Product highlights
11 L/min flow rate without pulsation
Silent pump
Adjustable bypass control system
Adjustable pressure switch preset to 2.4 bar
Resistant to dry running
Drinking water compatible

Technical specifications of the WM AQUATEC diaphragm pump


Input voltage: 12 V
Current consumption: 3.2 A (max. 6 A with preset)
Max. flow rate: 11.6 L/min
Pressure switch: adjustable from 1.9 to 3.8 bar
Inlet/outlet: 1/2'' male thread
Supplied with Ø 12 mm corrugated connector (1 x straight + 1 x 90°)
Required fuse: 10 A
Downloads
Download the manual



Download the technical data sheet
