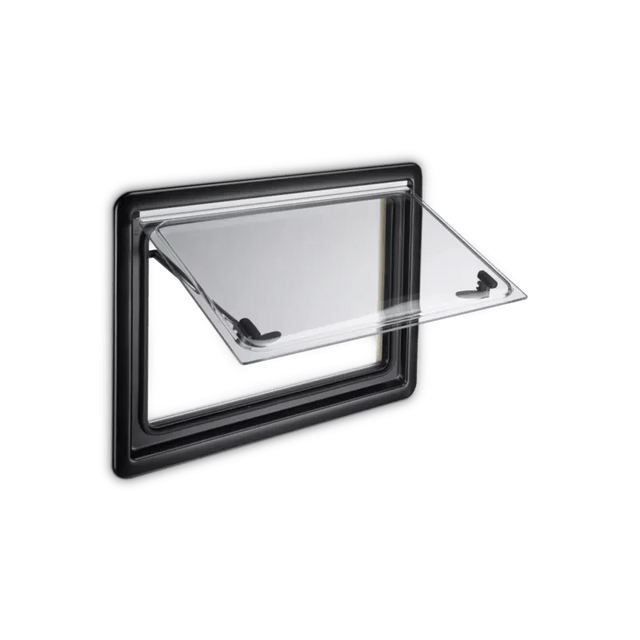

DOMETIC S4 Projectable Bay Window - Specially Designed for Motorhomes, Camper Vans, and Caravans

€329⁰⁰

Tax included Shipping calculated at checkout.

Product Details

The DOMETIC S4 hinged window is the essential component for transforming any vehicle into a truly comfortable, bright, and perfectly ventilated living space. Designed for motorhomes, campervans, panel vans, and caravans, it combines design, insulation, safety, and robustness, making it one of the most popular windows among professional vehicle converters.

Its double acrylic glazing provides excellent thermal and sound insulation, ideal for maintaining a comfortable temperature in both summer and winter. The hinged design ensures maximum ventilation while preventing rain from entering the vehicle.

Specification

Type: Projecting double-glazed window

Glazing material: Acrylic

Interior frame: Cream white (blind and mosquito net included)

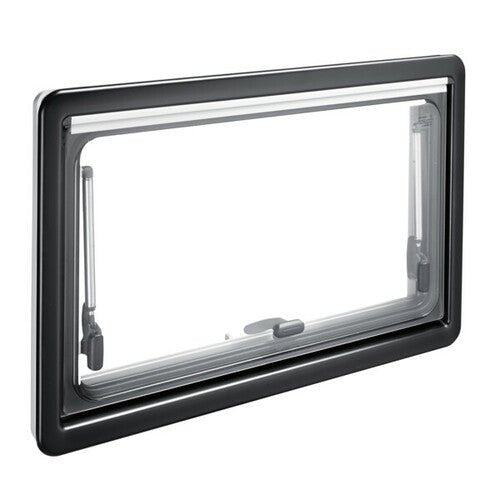

Exterior frame: Black

Wall thickness compatibility: 26 to 41 mm

Operation: Secure projecting opening

Insulation: Aluminized blackout blind

Security: Anti-tamper design (from the outside)

Dometic Projecting Window for Motorhomes, Vans, and Caravans

Product Description:
This double-glazed projecting window is the ideal solution for equipping your motorhome, camper van, van, or caravan. Designed to provide maximum comfort and safety, it comes with an interior frame that includes a mosquito screen and blackout blind, ensuring both optimal ventilation and complete darkness whenever you need it.

Thanks to its easy-opening system and acrylic double glazing, the window provides excellent thermal and sound insulation. Its robust design and simple installation make it a preferred choice for many recreational vehicle converters.

Advantages of the Dometic Projecting Window:

Optimal ventilation thanks to the projecting opening.
Maximum comfort: integrated blackout blind + mosquito screen in the frame.
High insulation performance with double glazing.
Enhanced security: cannot be removed from the outside.
Easy and quick installation for walls 26–41 mm thick.
Durable quality with robust and resistant materials.

Technical Features:

Acrylic double-glazed window.
Cream-colored interior frame with mosquito screen and blind.
Black exterior frame.
Available in various sizes to suit your needs.

Why Choose This Window?
Versatile and reliable, this projecting window is the go-to choice for motorhome, van, and caravan conversions. It combines design, comfort, durability, and safety, all with easy installation.

How to Choose the Right Window Size for My Van:
To select the correct size, measure the cut-out dimensions and the overall outer dimensions on the location of your vehicle’s wall. If both the cut-out and the exterior dimensions of the window are unobstructed, you can install the window.

Highlights of Dometic Seitz S4 Projecting Windows for Vans & Motorhomes:

Total comfort: one-hand operation system, also including mosquito screen and blackout blind
Easy handling
Maximum ventilation
Good thermal insulation: aluminum-coated sunshade roller
Simple and quick installation
Robust quality with acrylic double glazing
Very secure: double glazing and cannot be removed from the outside
High flexibility: suitable for wall thickness 26–41 mm

Technical Features of Dometic S4 Window:

Blind and mosquito screen included in the interior frame
Cream-colored interior frame
Black exterior frame

Models and Dimensions:

Model (L×H mm)	Overall Dimensions (L×H mm)	Cut-out Dimensions (L×H mm)	Weight (kg)
300 × 500	343 × 531	293 × 498	4.3
500 × 300	544 × 330	499 × 298	4
350 × 500	393 × 531	343 × 498	4.1
500 × 450	544 × 480	500 × 448	5
550 × 580	594 × 611	548 × 578	6.3
600 × 600	644 × 631	599 × 599	7
700 × 300	745 × 330	700 × 298	5.3
700 × 400	745 × 430	702 × 398	6.1
700 × 450	741 × 481	701 × 448	6.5
700 × 600	745 × 631	702 × 599	7.7
800 × 450	846 × 481	801 × 450	7.1
900 × 400	948 × 430	902 × 398	7.5
900 × 450	948 × 481	902 × 448	8
900 × 500	948 × 531	902 × 499	8.4
900 × 550	948 × 581	902 × 549	8.6
900 × 600	948 × 631	902 × 599	9.2
1000 × 500	1048 × 531	1002 × 499	9.3
1000 × 450	1048 × 481	1002 × 448	9.9
1200 × 350	1249 × 380	1168 × 282	8.8
1200 × 600	1249 × 631	1201 × 599	12.5
1300 × 550	1343 × 581	1298 × 549	13.8
1300 × 600	1343 × 631	1297 × 599	14.2
