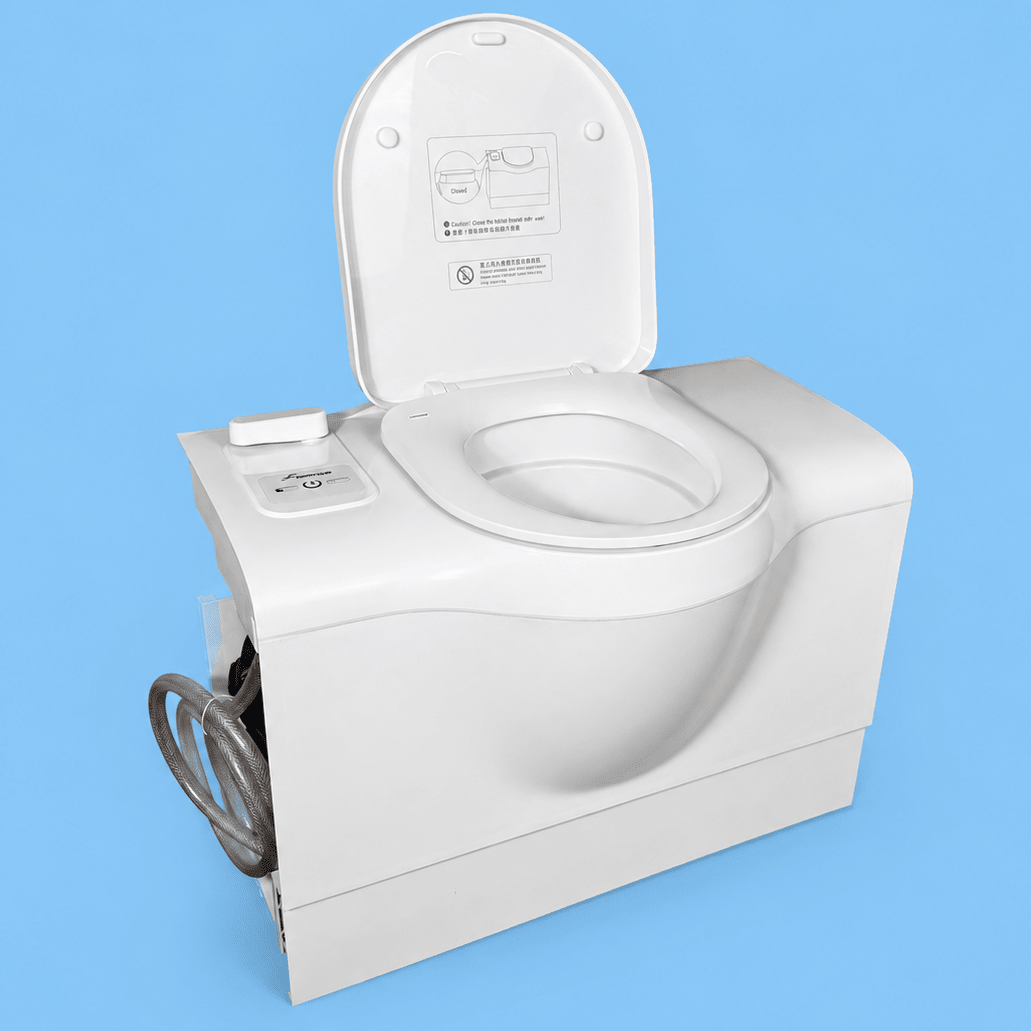

Bench cassette toilet for motorhomes and campervans - 12V flush - W5001

A real plumbed-in toilet, without giving up floor space.

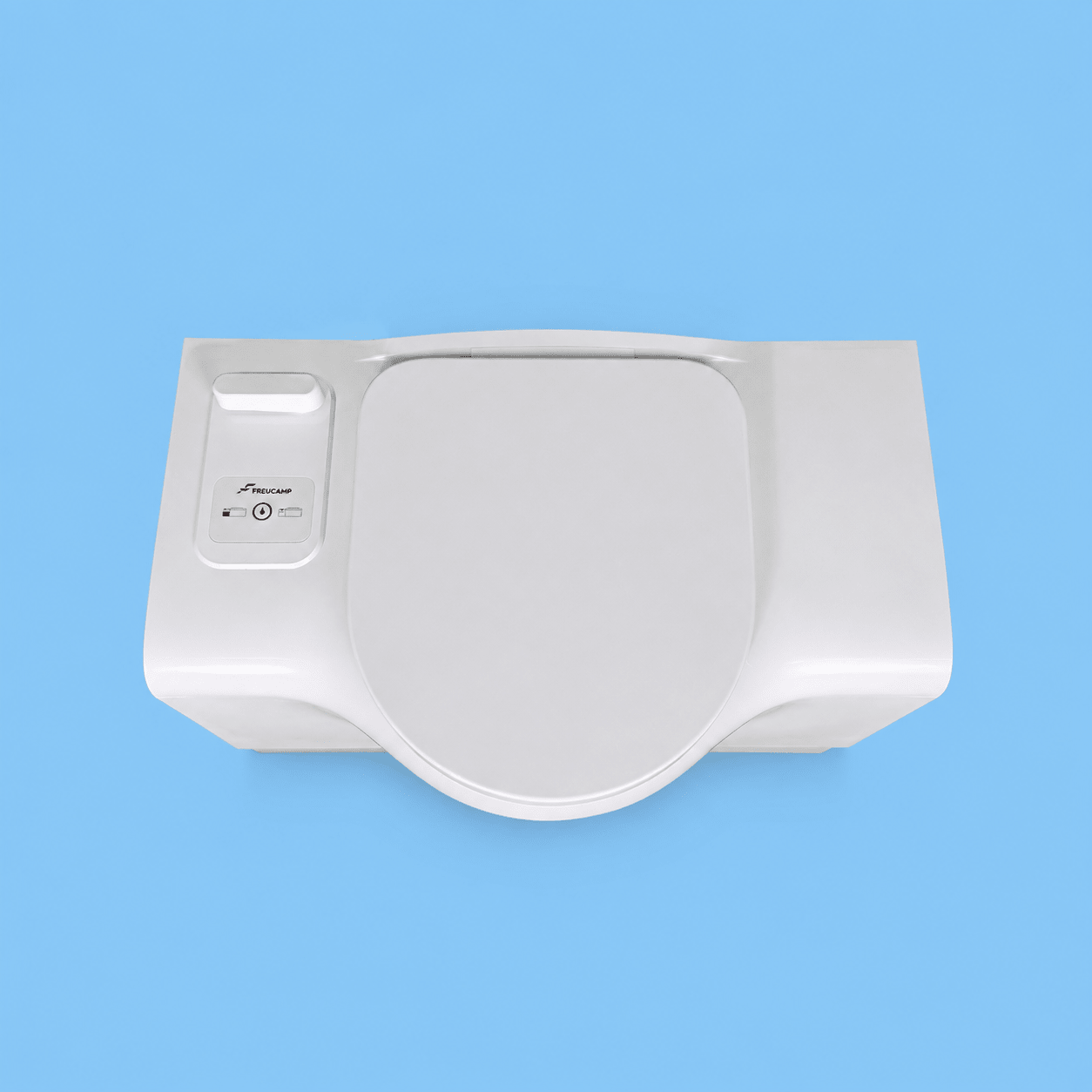

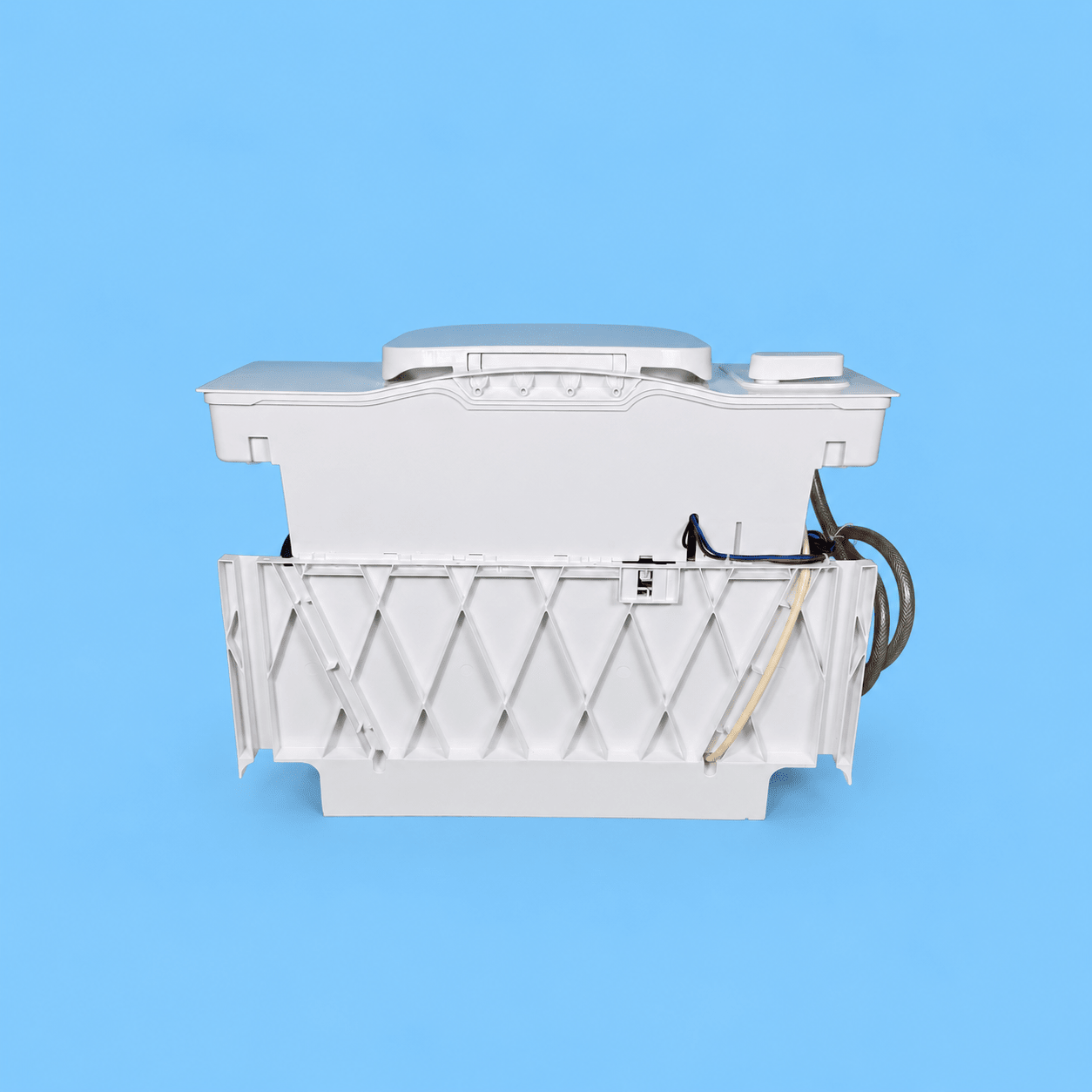

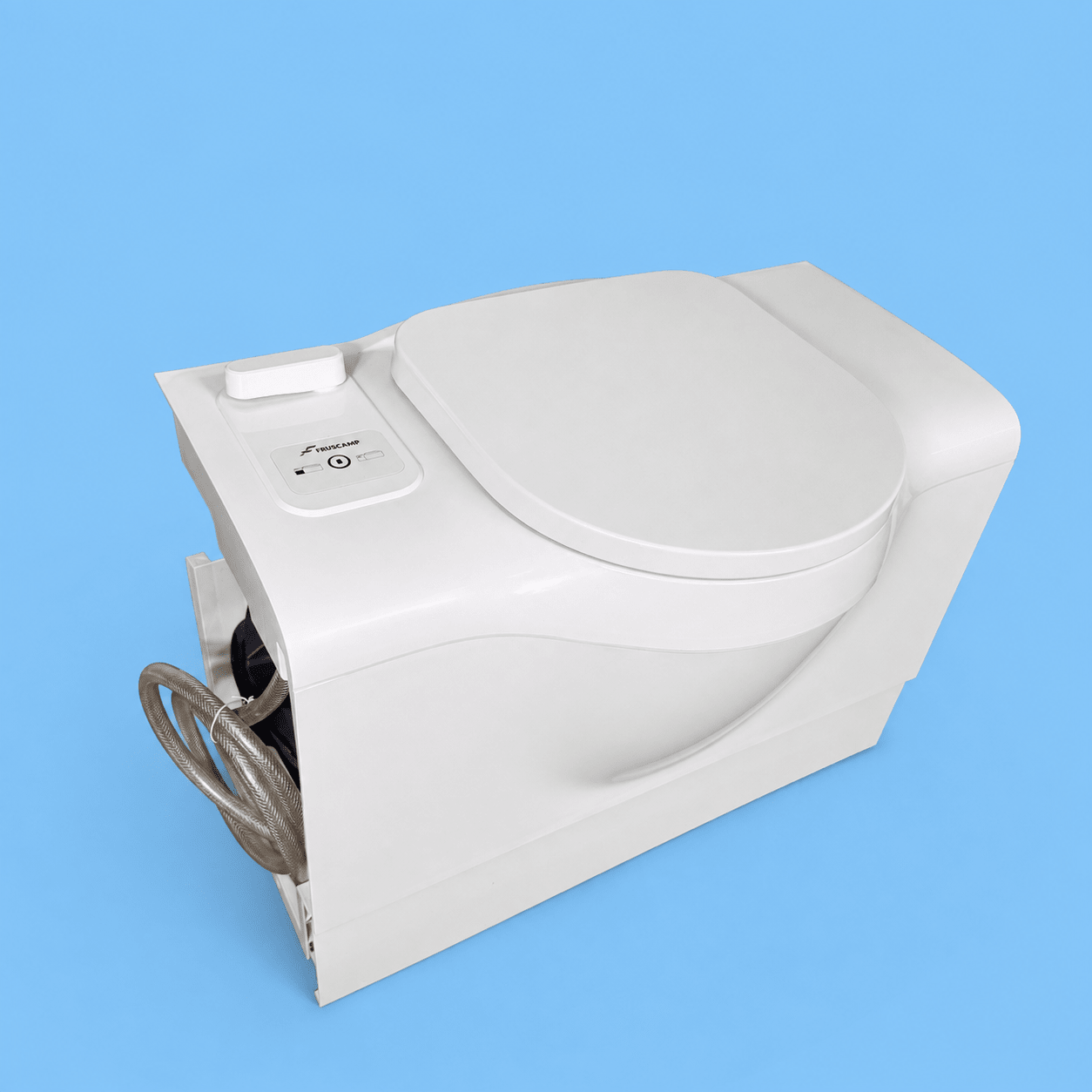

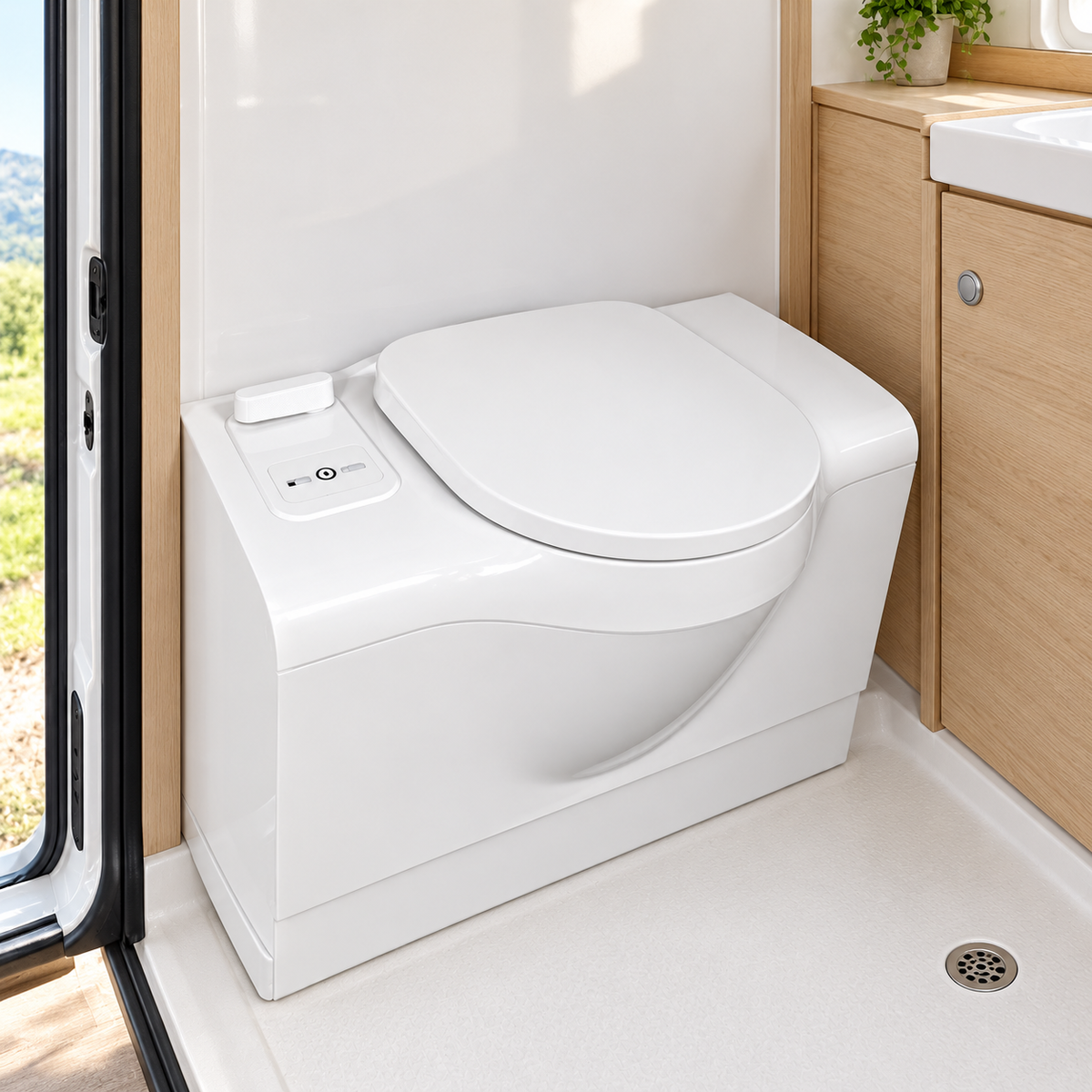

The W5001 is a bench-shaped cassette toilet: a low, flat body that sits flush against the partition and doubles as a seat in your shower cubicle. It connects directly to the vehicle's pressurised water system — the comfort of a fixed WC without the bulk of a traditional one.

Available with the service door on the right or on the left, to match the side of your conversion.

Specifications

• Type: cassette toilet, bench-shaped design
• Configurations: service door on the right or on the left

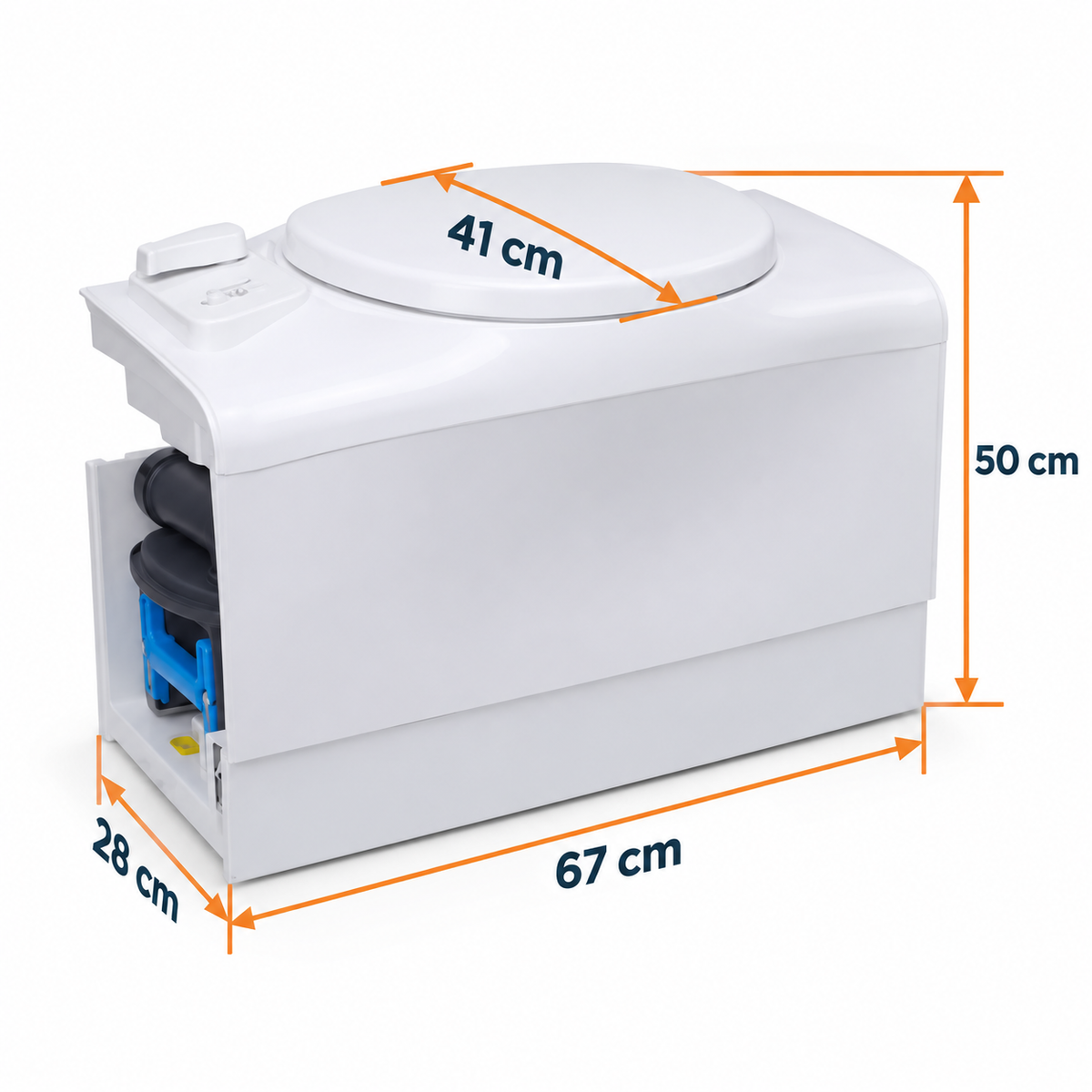

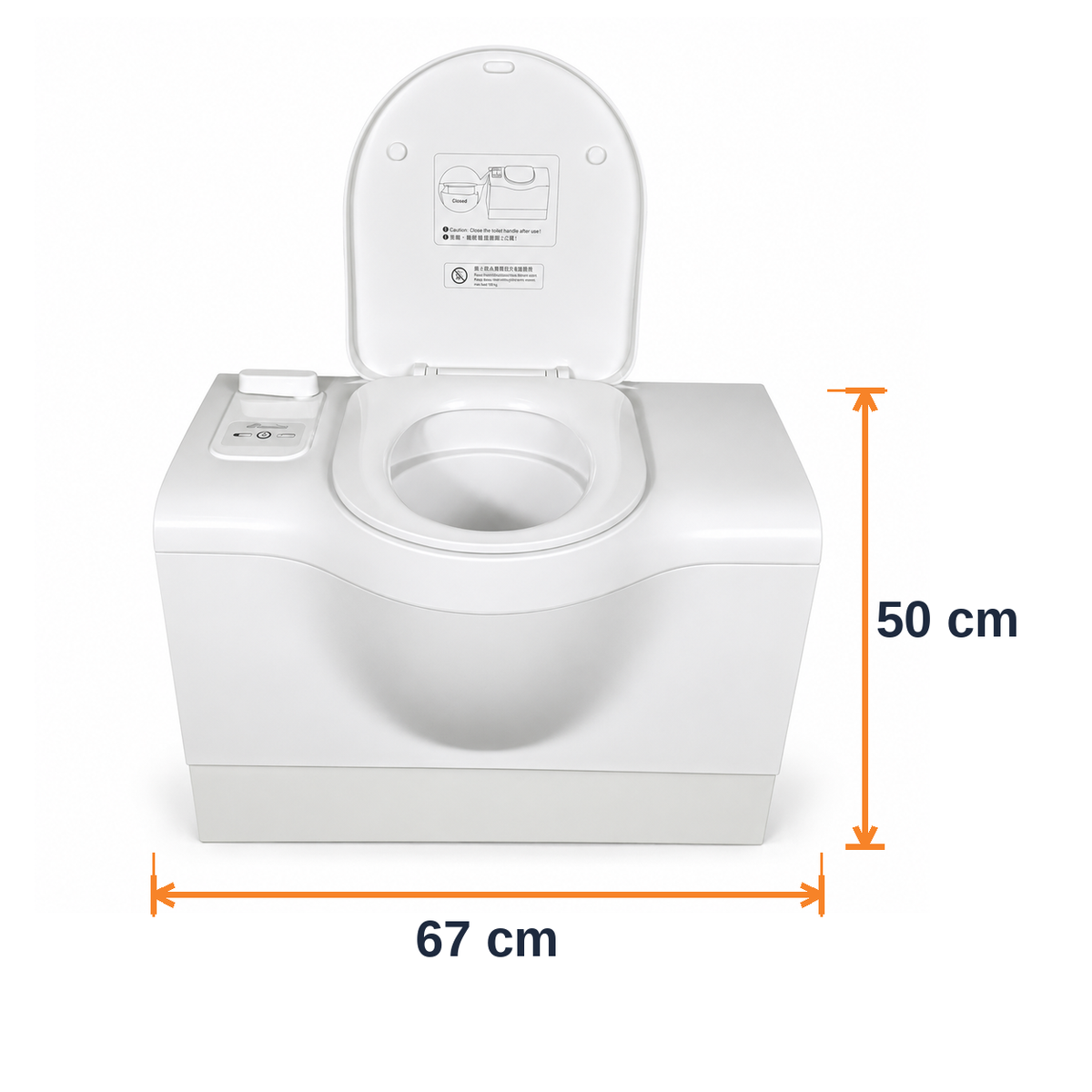

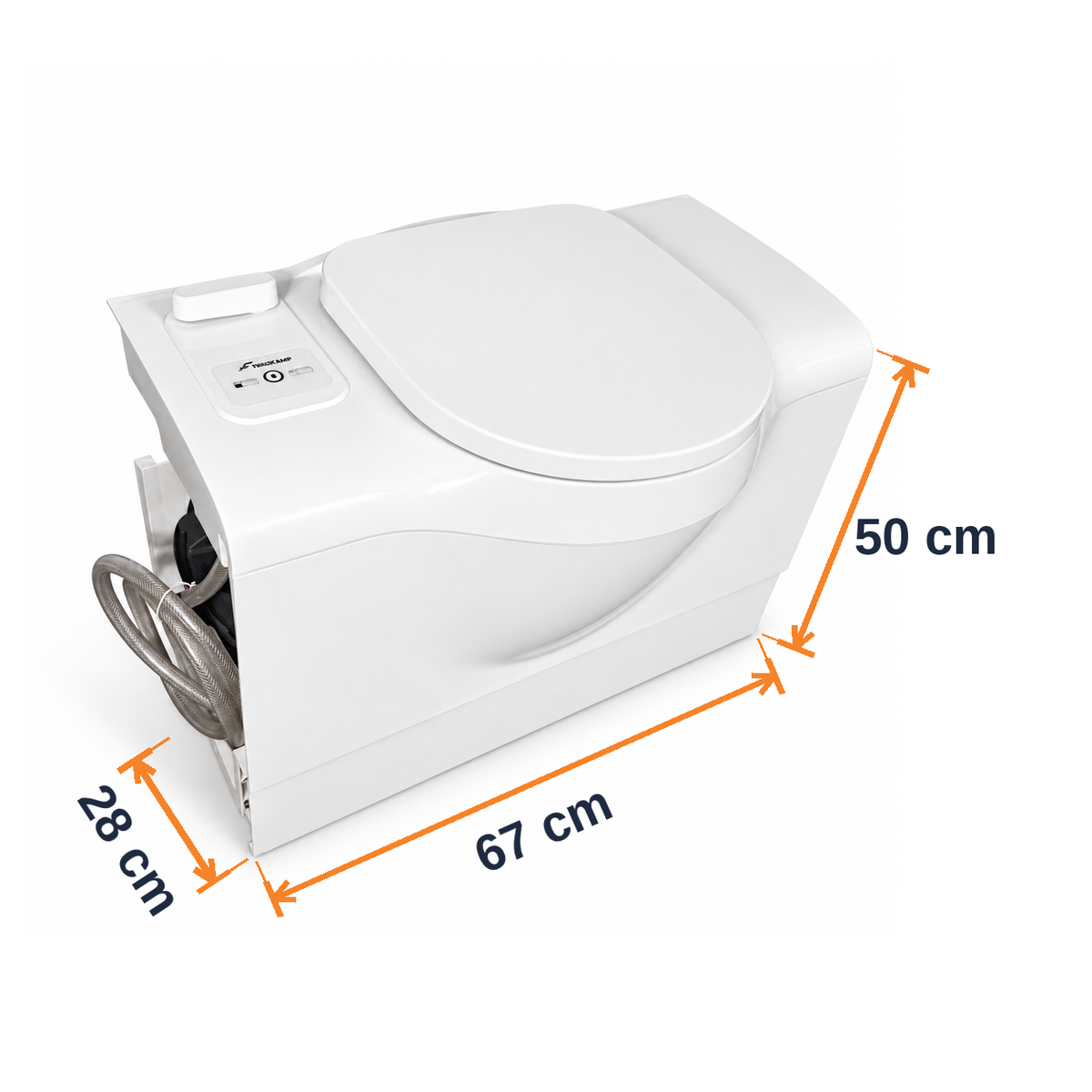

• Body dimensions: 670 W × 405 D × 522 H mm (lid open: 670 × 405 × 860 mm)
• Service hatch cut-out: 331 × 379 × 70 mm (W × H × D)

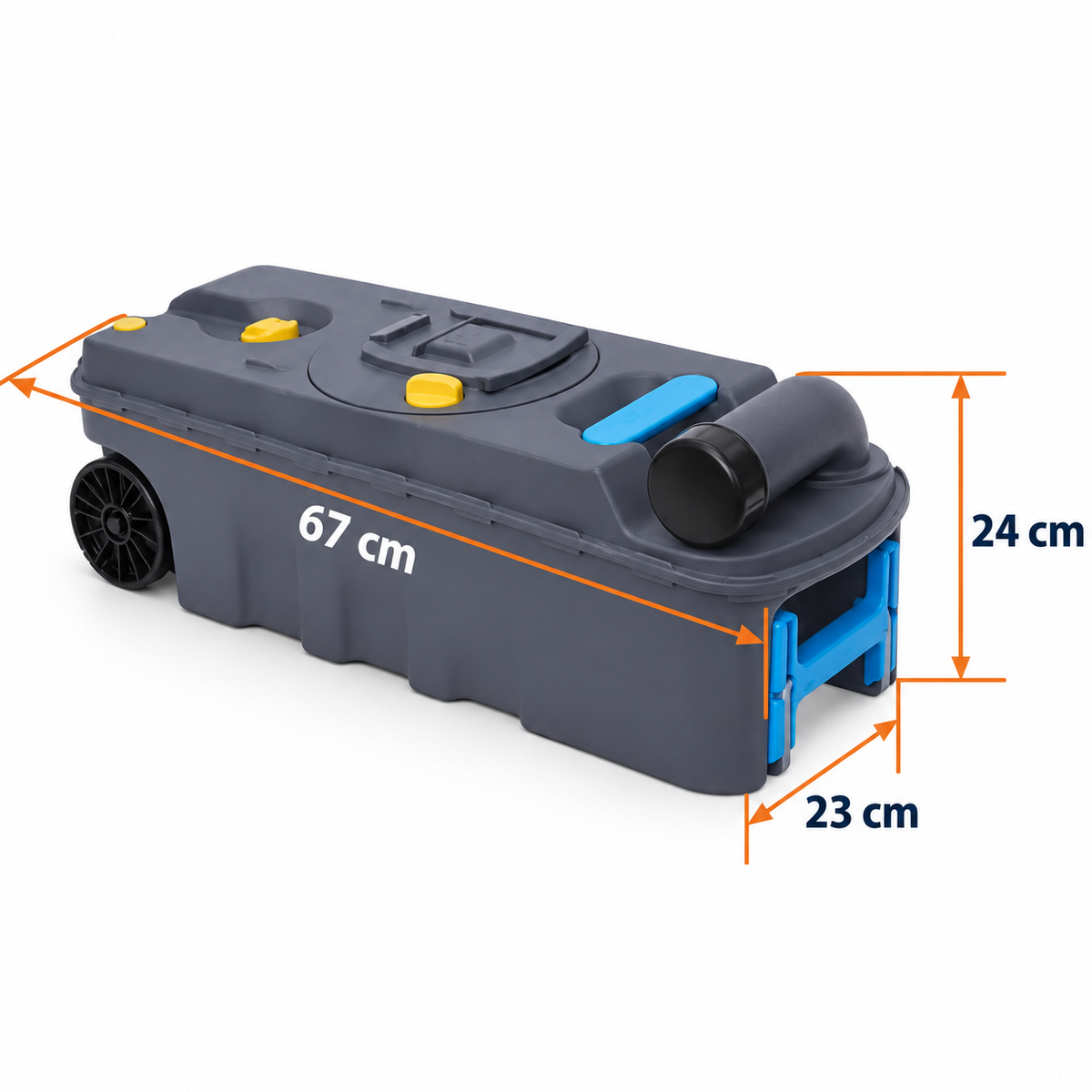

• Waste cassette: 20 L, with wheels and a retractable handle

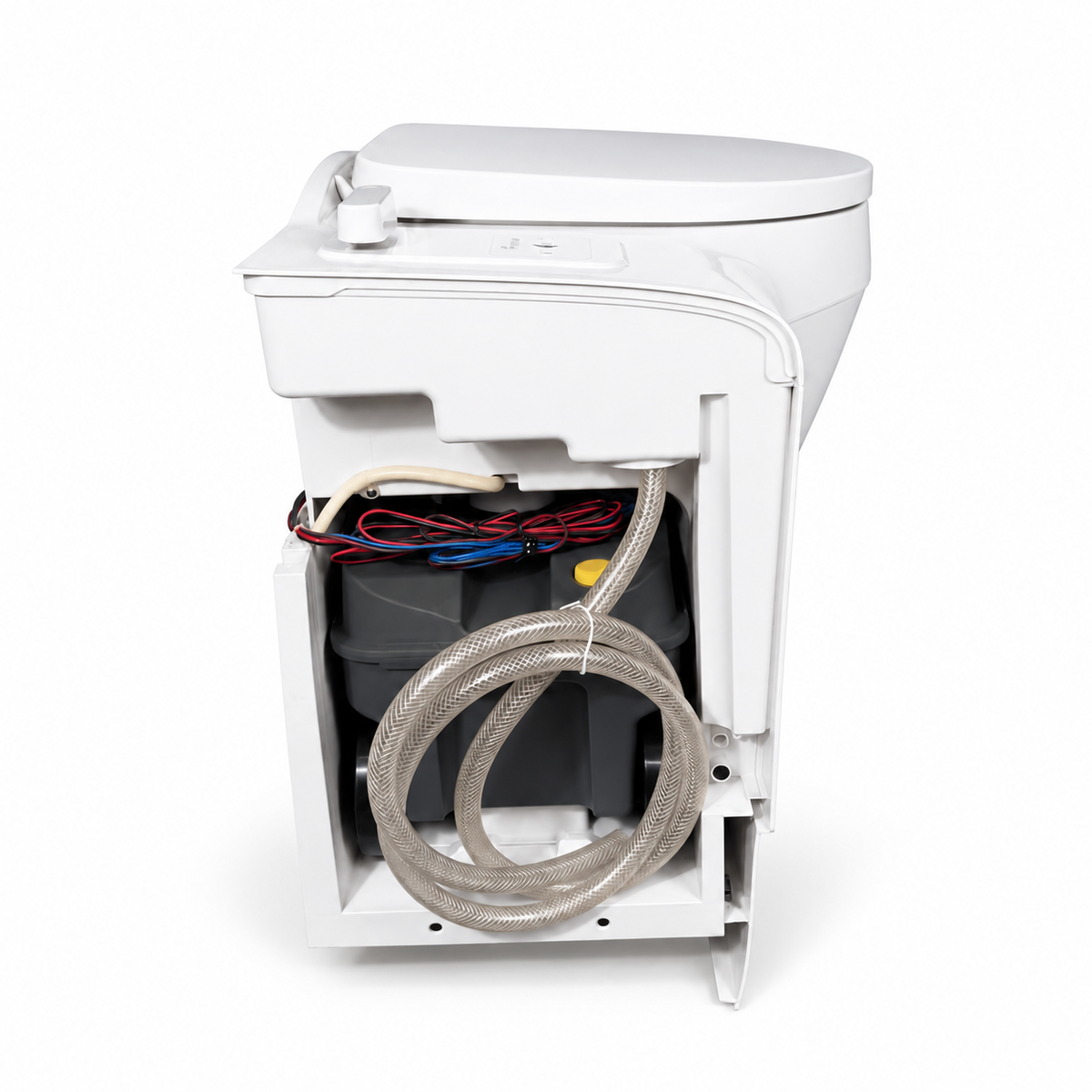

• Water inlet: Ø10 mm — direct connection to the vehicle's pressurised water system
• Flush: pre-rinse + flush, water-saving
• Maximum user load: 120 kg
• Weight: 10 kg
• Material: lightweight polypropylene (PP); antibacterial seat and lid
• Lid: magnet + soft-close mechanism
• Sealing: high-gloss PBT blade and gaskets between bowl and cassette
• Overflow protection: cassette-in-place detection, red full-level indicator + audible alarm, automatic flush lockout
• Venting: dedicated external vent, to take odours out of the vehicle
• Colour: white

Choosing the right side

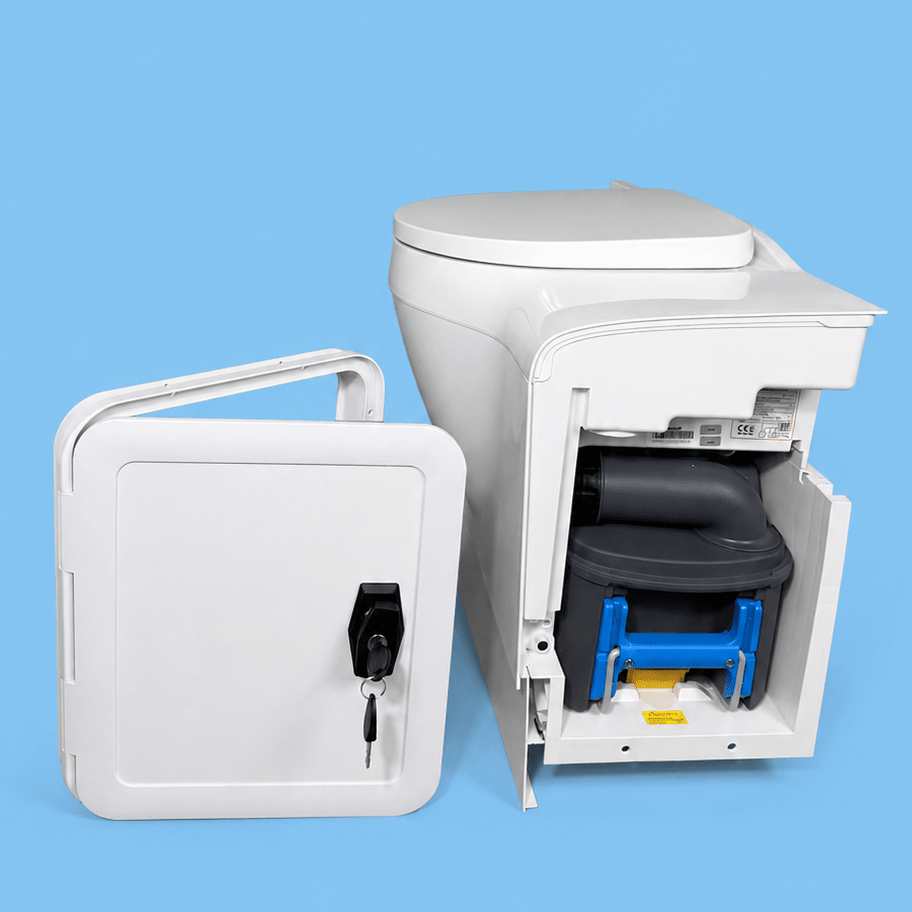

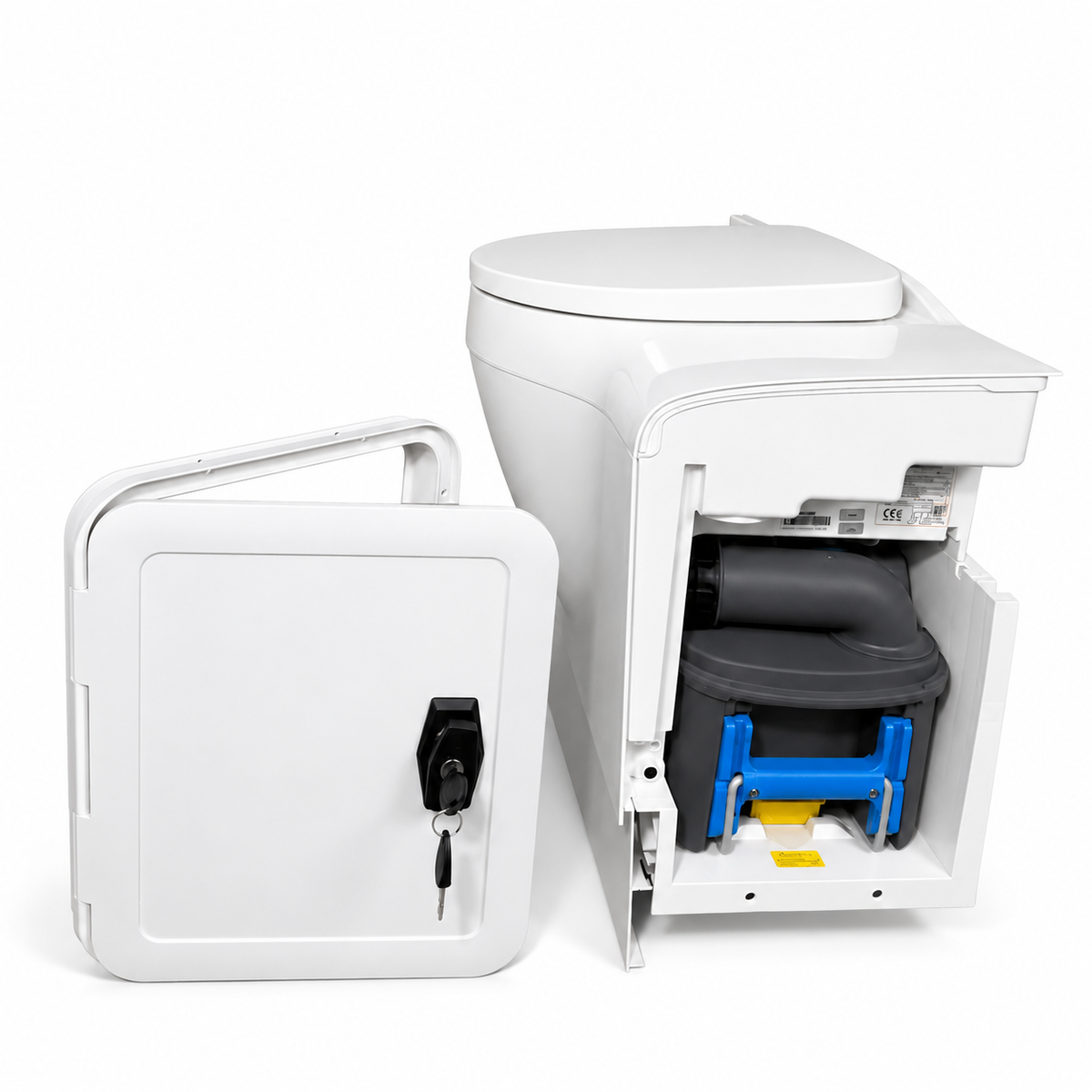

• The service door is the outside hatch you empty the cassette through — you never carry waste water across the living space.
• Choose Right or Left according to the side of the vehicle the hatch will sit on, seen from outside.
• Plan a 331 × 379 mm opening in the body panel, 70 mm deep, on that side.

Not sure which side you need? Contact our technical team — send us a photo of your layout and we will tell you before you buy.

Why our customers like it

• Bench shape, low profile — a flat rectangular body that also works as a seat when you shower. Ideal for compact bathrooms.
• Pre-rinse + 12V flush — fed from your fresh water tank through a Ø10 mm inlet, with a pre-rinse function that uses less water and keeps the bowl clean.

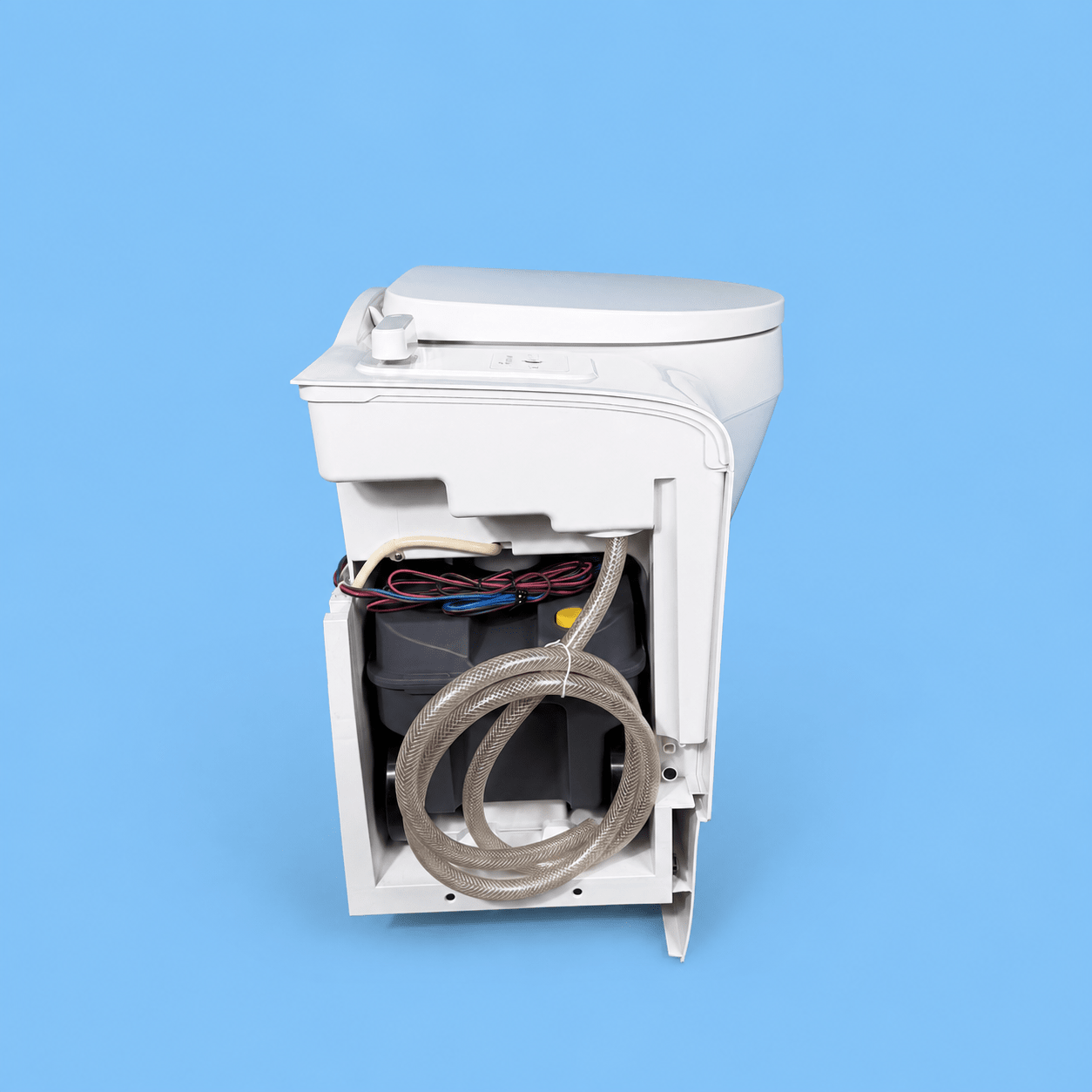

• 20 L wheeled cassette with telescopic handle — emptied from outside through the service hatch.
• Anti-odour vent + PBT blade and seals — a dedicated vent takes odours out of the vehicle, and the high-gloss PBT blade between bowl and cassette blocks leaks and smells.

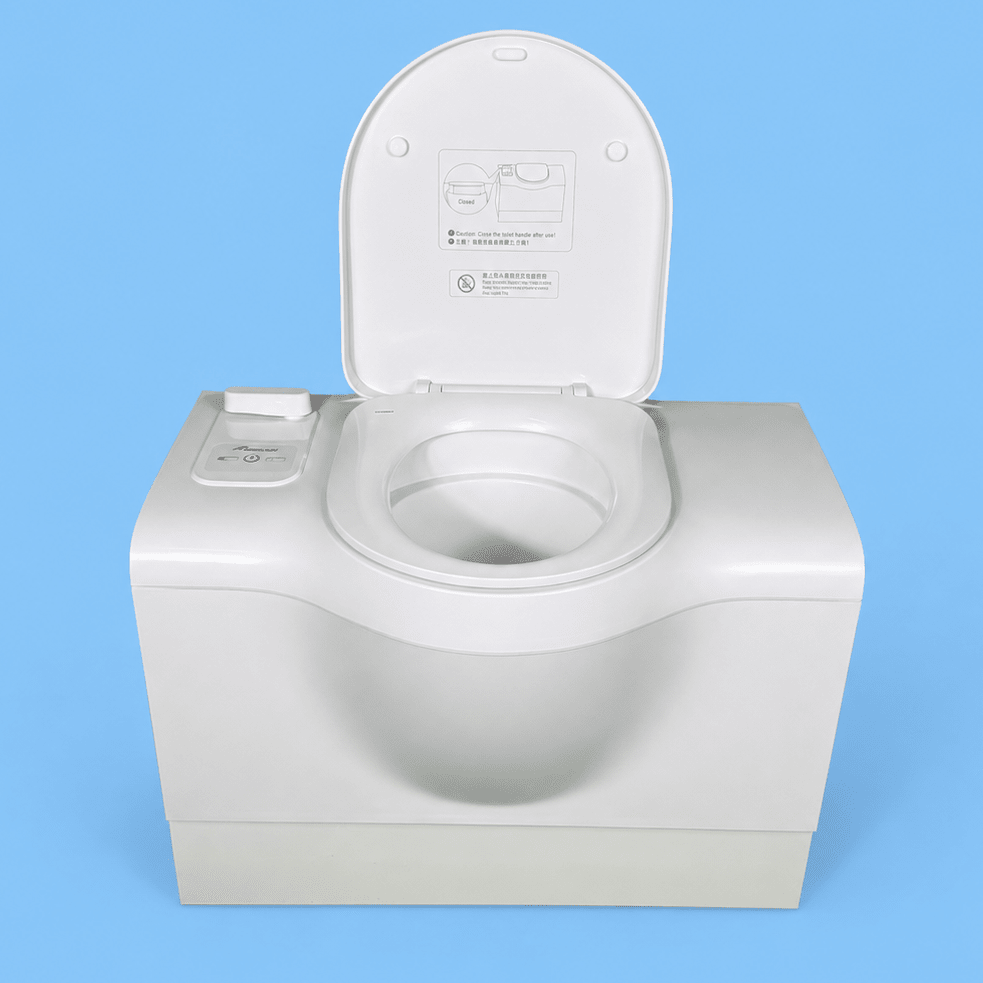

• Soft-close lid with magnet — silent to close, no rattle on the road.
• Antibacterial seat and lid — easier to keep clean in a small space.

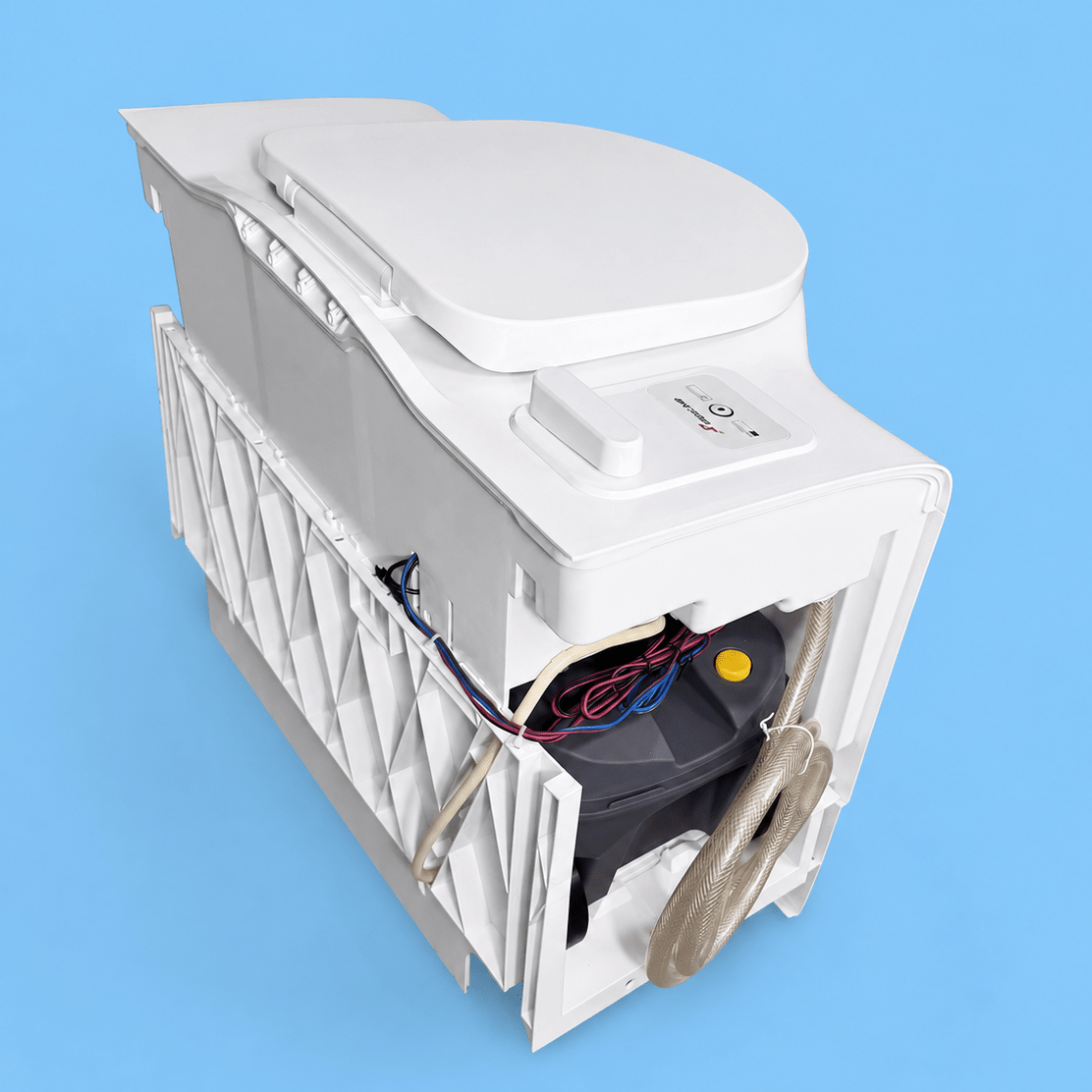

• Smart full-cassette detection — red light and alarm on the control panel. The flush is automatically locked out when the cassette is full, so an overflow is impossible.
• Lightweight PP construction — only 10 kg, rated to 120 kg.

What's in the box

• W5001 bench cassette toilet
• 20 L waste cassette with wheels and telescopic handle
• Service hatch with door and lock
• Water connection hose and fittings
• Installation guide

What you'll need

• A jigsaw to cut the service hatch opening
• A cordless drill/driver
• Body sealant for the hatch frame
• A 12V feed and a connection to your pressurised fresh water circuit

Why choose EuroVan

• Free technical advice — before you buy and while you fit it. Our team is in France.
• Delivered complete — cassette, service hatch with lock and water fittings are all included.
• Fully serviceable — cassette, seals and blade are replaceable parts, not a throwaway unit.
