Replacement Caravan & Motorhome Windows

(14 produkter)

Need to replace a broken, cracked or yellowed window on your caravan, motorhome or campervan? Every window we sell is listed by its cut-out size, the size of the opening in the wall. If your opening matches one of the sizes below, the new window fits straight in, with no new cutting.

Window smashed or broken in?

Send us photos and your cut-out size: we reply with a quote for your insurer and the window that fits.

Request your quote

Find the window that fits your cut-out

Enter the width and height of the opening in the wall, in millimetres. Tolerance ± 5 mm.

Width (mm)Height (mm)Type

Measure your cut-out in 3 steps

Remove the old window, or measure from inside once the interior frame is off.
Measure the opening in the wall: width × height in mm, and the wall thickness.
Note the corner shape: square or rounded.

Side windows: cut-out sizes by model

Model	Opening	Corners	Cut-out sizes available (W × H, mm)

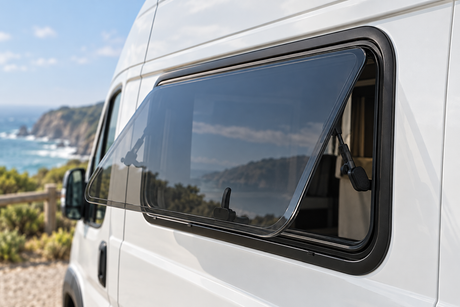

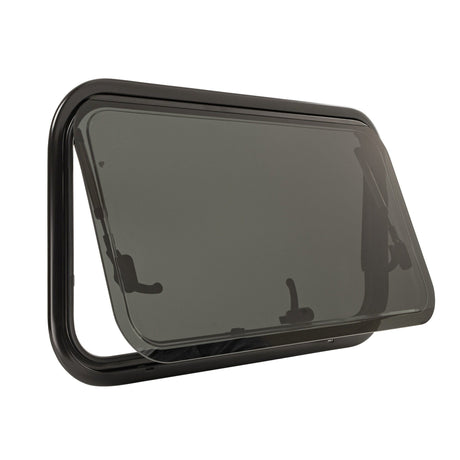

VanShade	Push-out	Rounded	280 × 380, 300 × 400, 300 × 500, 350 × 500, 500 × 300, 500 × 350, 500 × 450, 500 × 520, 550 × 600, 600 × 600, 700 × 300, 700 × 400, 700 × 450, 700 × 550, 800 × 400, 800 × 500, 900 × 300, 900 × 450, 900 × 500, 900 × 520, 900 × 600, 900 × 900, 1000 × 500, 1100 × 550, 1200 × 300, 1300 × 550, 1300 × 600, 1450 × 550

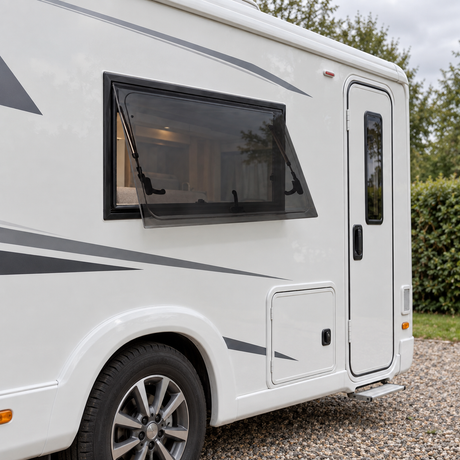

VanSquare	Push-out	Square	280 × 380, 300 × 500, 350 × 300, 350 × 500, 500 × 300, 500 × 350, 500 × 450, 600 × 450, 600 × 600, 700 × 300, 700 × 350, 700 × 400, 700 × 450, 700 × 500, 700 × 550, 800 × 400, 800 × 500, 900 × 300, 900 × 350, 900 × 450, 900 × 500, 900 × 520, 900 × 550, 1000 × 500, 1100 × 550, 1180 × 285, 1200 × 300, 1200 × 500, 1300 × 600, 1450 × 550, 1500 × 450, 1570 × 575

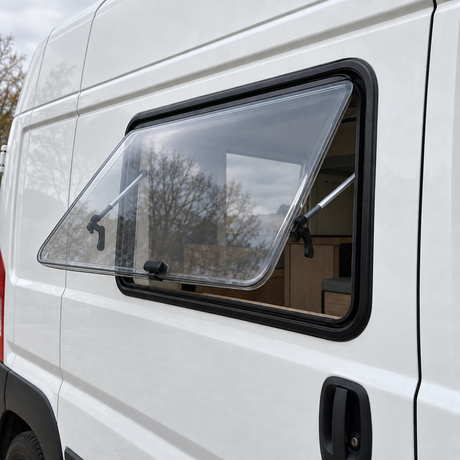

VanLight	Push-out	Rounded	300 × 500, 350 × 500, 500 × 300, 500 × 350, 500 × 450, 500 × 520, 600 × 600, 700 × 300, 700 × 400, 700 × 550, 700 × 800, 800 × 400, 900 × 300, 900 × 500, 900 × 520, 900 × 550, 900 × 600, 900 × 900, 1100 × 550, 1300 × 550, 1300 × 600, 1450 × 550
VanCurve	Push-out	Rounded	280 × 380, 490 × 500, 700 × 400, 700 × 510, 750 × 465, 818 × 315, 960 × 450
VanSlide	Sliding	Rounded	400 × 300, 500 × 300, 550 × 320, 600 × 350, 700 × 400, 700 × 450, 700 × 500, 700 × 550, 800 × 400, 800 × 500, 900 × 300, 900 × 400, 900 × 550, 1000 × 500
VanSlide+	Sliding	Rounded	500 × 300, 500 × 400, 600 × 350, 700 × 300, 700 × 400, 700 × 500, 700 × 550, 800 × 400, 900 × 550, 960 × 450, 1100 × 450, 1100 × 550
VanSlide Square	Sliding	Square	500 × 450, 700 × 300, 700 × 400, 900 × 450, 900 × 500, 1000 × 500, 1200 × 500

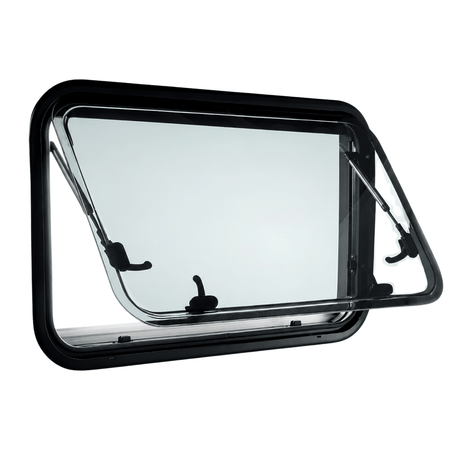

VanLight (window only)	Push-out	Rounded	300 × 500, 500 × 300, 500 × 520, 600 × 600, 700 × 300, 700 × 400, 900 × 500

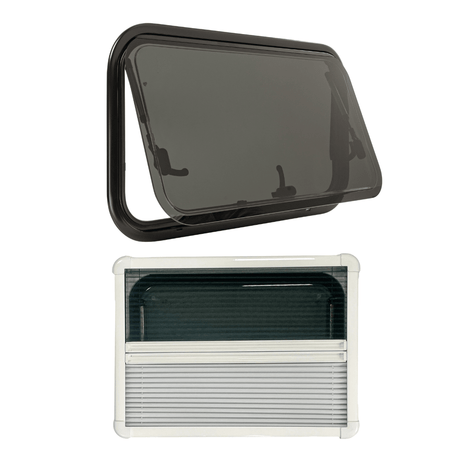

All side windows come with their aluminium counter-frame, screws and fitting guide. Models sold with blind and mosquito net include a separate interior frame.

Roof windows: cut-out sizes

Model	Type	Roof cut-out (mm)	Same cut-out as
STYLE 40x40	Roof window	400 × 400	Mini Heki
SKYDOME 40x40	Roof window	400 × 400	Mini Heki
PANORAMA LED 500x700	Roof window	700 × 500	Midi Heki
PANORAMA SLIM 3 LED	Roof window, extra-flat	500 × 500, 700 × 500, 800 × 500, 960 × 655	Midi Heki (700 × 500), Heki 2 (960 × 655)

Want the full process? Read Replacing caravan and motorhome windows: a practical guide. Fitting windows in a new conversion instead? See all campervan windows.

Frequently asked questions

How do I know if a replacement window will fit?

Measure the opening in your wall, not the old window: width × height in mm. If that cut-out size appears in the tables above, the window fits the existing opening without any new cutting.

My size is not in the list. What can I do?

Contact us with a photo and your measurements. We will tell you honestly if one of our windows fits. A smaller window cannot cover the opening, and a larger one means enlarging the cut-out.

Do the windows fit caravan walls as well as panel vans?

Yes. The counter-frame fits flat walls (caravans, motorhomes) and curved walls (panel vans), from 25 to 75 mm thick, longer screws allowing thicker walls.

My window was smashed in a break-in. Can you help with the insurance claim?

Yes. Send us photos and your cut-out size: we reply with a quote you can pass on to your insurer. See Broken window: quote for your insurer.

Are the roof windows compatible with Heki openings?

Yes. Our 40x40 roof windows use the same 400 × 400 mm cut-out as a Mini Heki, the PANORAMA LED uses 700 × 500 mm like a Midi Heki, and the PANORAMA SLIM 960 × 655 matches a Heki 2 opening.

Not sure your opening matches?

Send us a photo and your measurements: we confirm the right model and size before you order.

Request your quote
